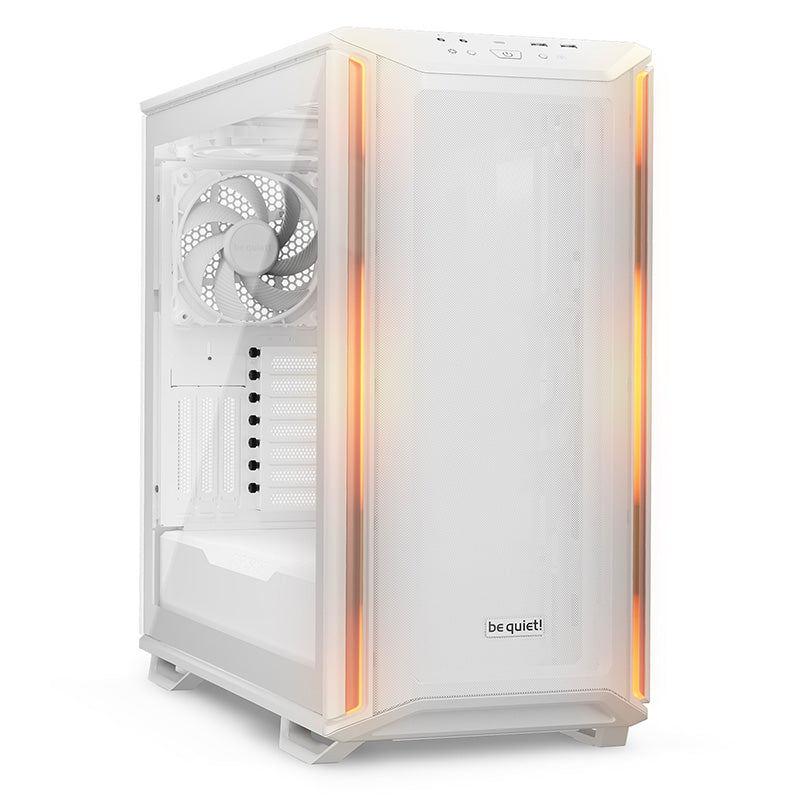

be quiet! Dark Base 701 Mid Tower ATX Case - White (BGW59)
be quiet! Dark Base 701 Mid Tower ATX Case - White (BGW59)
SPECIFICATIONS:
GENERAL DATA |
|
Model |
Dark Base 701 White |
Color option |
White |
Motherboard compatibility |
E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX |
Case size excl. stands (L x W x H), (mm) |
565 x 249 x 495 |
Case size incl. stands (L x W x H), (mm) |
565 x 249 x 523 |
Volume (l) |
69.64 |
PSU form factor |
ATX PS/2 |
Net weight (kg) |
12.8 |
Expansion slots |
7 + 3 |
PRE-INSTALLED FANS |
|
Fan at top |
1x Silent Wings 4 140mm PWM high-speed White |
Fan at front |
1x Silent Wings 4 140mm PWM high-speed White |
Fan at rear |
1x Silent Wings 4 140mm PWM high-speed White |
Dimensions (L x W x H), (mm) |
Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25 |
Fan speed at 100% PWM / 12V (rpm) |
1900 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
78.4 / 133.2 |
Air Pressure at 100% PWM / 12V (mm H2O) |
2.36 |
Noise level at 100% PWM / 12V (dB(A)) |
29.3 |
Voltage range (V DC) |
5 - 13.2 |
Input power (W) |
4.8 |
Input current (A) |
0.4 |
Connector |
4-pin PWM |
Lifespan (h / 25 °C) |
300,000 |
Fan controller |
|
MAXIMUM FAN INSTALLATION |
|
Maximum fans |
8 |
Top (mm) |
3x 140 / 3x 120 |
Front (mm) |
3x 140 / 3x 120 |
Rear (mm) |
1x 140 / 1x 120 |
Bottom (mm) |
1x 140 / 1x 120 |
OPTIONAL RADIATOR INSTALLATION |
|
Top (mm) |
120 / 140 / 240 / 280 / 360 |
Front (mm) |
120 / 140 / 240 / 280 / 360 |
Rear (mm) |
120 |
PSU COMPATIBILITY |
|
Maximum dimensions excl. bottom fan (mm) |
250 |
Maximum dimensions incl. bottom fan (mm) |
250 |
GRAPHICS CARD |
|
HDD cage (in height of graphics card) installed (mm) |
415 |
HDD cage (in height of graphics card) removed (mm) |
415 |
Maximum PCIe slots with vertical graphics card (pcs.) |
3 |
DRIVE BAY CAPACITY |
|
3.5 slots (scope of delivery) |
2 |
3.5 slots (max.) |
3 |
2.5 slots (scope of delivery) |
3 |
2.5 slots (max.) |
5 |
COOLING |
|
Max.construction height of CPU cooler unit (mm) |
185 |
Airflow channel |
Front / Top / Rear / Bottom |
LIGHTING |
|
LED illumination |
|
LEDs (pcs.) |
48 |
LED type |
ARGB - 5V |
LEDs synchronizable with controller/motherboard |
|
I/O PANEL |
|
USB 3.2 Gen. 2 Type C |
1 |
USB 3.2 Type A |
2 |
HD Audio I/O |
Mic + Audio |
INSULATION AND DAMPING |
|
Side panel insulation mats |
|
Anti-vibration decoupled HDD |
|
Anti-vibration decoupled fan |
|
Anti-vibration decoupled PSU |
|
SCOPE OF DELIVERY |
|
Screw set (Drives/Motherboard) |
|
Additional standoffs (pcs.) |
1 |
LED strips (pcs.) |
0 |
Cable ties (pcs.) |
9 |
Mesh Front Panel |
|
REMOVEABLE DUST FILTERS |
|
Front |
1 |
Bottom |
1 |
MATERIAL |
|
Top cover |
Steel |
Front panel |
Steel |
Side panel |
Glass |
Side panel window |
Steel |
Stands |
ABS |
