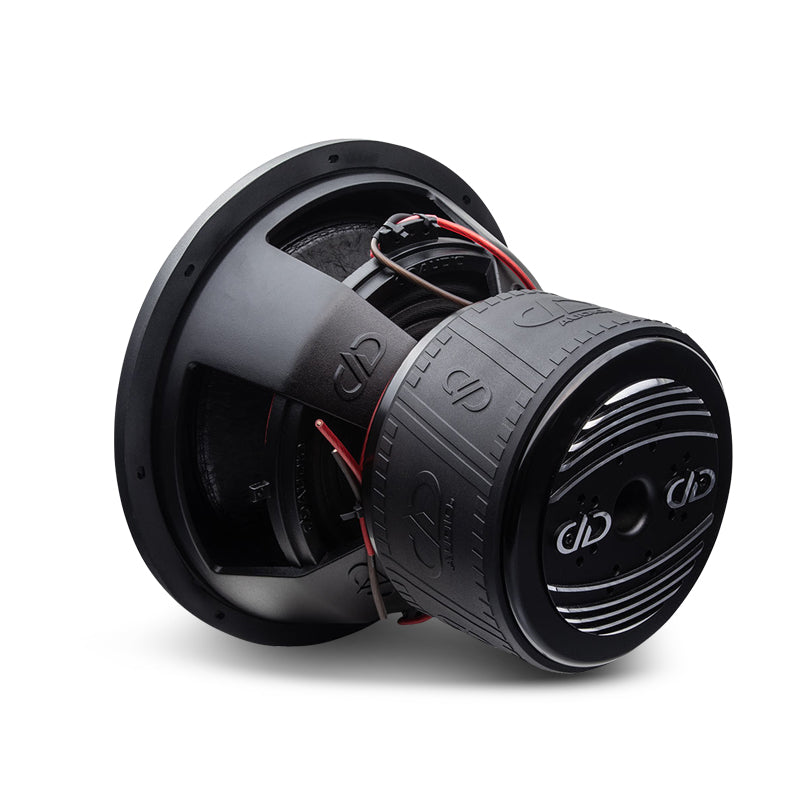

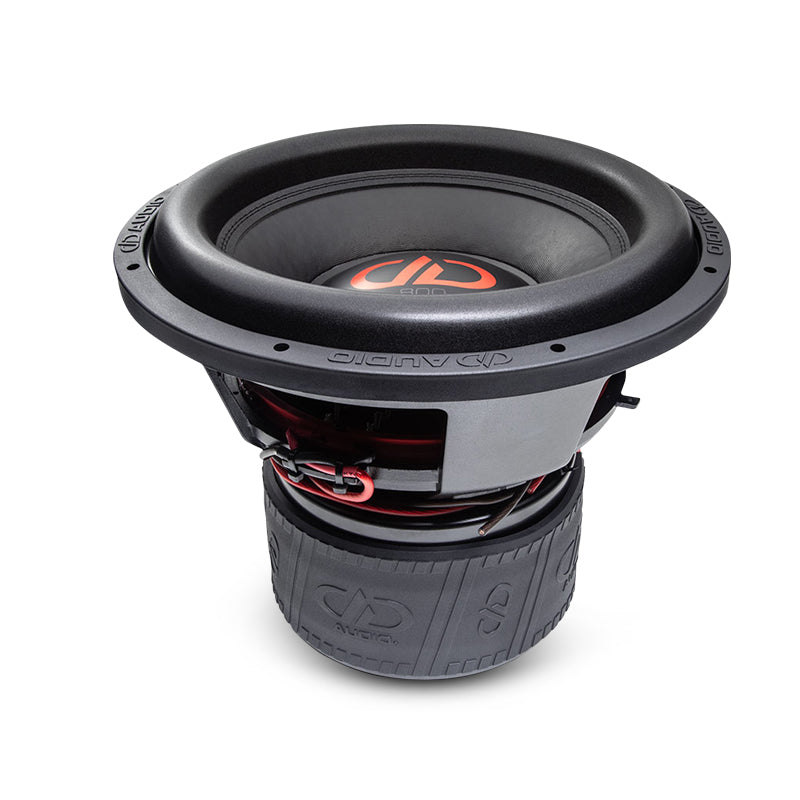

DD Audio DD-815F 15" 800 Series Power Tuned 5000w Subwoofer - D2

Bass Monster

The 800 Series latest revision is a mean mother “f”. In the previous “e” revision they got bigger and better; and in this latest “f” revision they receive precision engineered, thermal cooling enhancements of major significance along with some design work that is literally cutting edge. DD is pushing the already highly efficient 800 subwoofers to meet our evolving performance standards to ensure longer periods of loud, continuous play.

The DD design philosophy is to prioritize the maximization of total efficiency: converting raw power to clean sound, while managing the intense heat created by this conversion. Given this mandate, the new 800 “f” revision receives a vented aluminum voice coil insert and vented, finned, aluminum heatsink to conduct and transfer heat away from the subwoofer’s most vulnerable components. As the increased power handling will undoubtedly bring with it greater demand for excursion, a taller surround, double stitched to a fiberglass loaded, non-pressed cone, adjoined to a voice coil featuring increased winding length with DD’s proven double layer spider, offers increased Xmax and elegant styling. The heat sink features beautifully carved, polished aluminum DD logos, and the motor is wrapped in a rubber boot with an all new embossed design.

800 Series

The 800 Series offers some of DD AUDIO’s most extreme Power Tuned Subwoofers designed for outstanding power handling, with competitive bassheads in mind.

Precision engineered, thermal cooling enhancements, from the proven Free Flow Cooling System on all models to the cutting edge aluminum heat sinks on the new “f” revision, let you play longer, while the tall surrounds, high-temp voice coils, and high excursion spiders let you play harder.

All of them incorporate the very best component parts and the newest models feature the latest in state of the art design to ensure maximum efficiency for a power range that serves up competition grade performance with power handling to match. They’re for the serious basshead looking to shake up a car show with hard hitting, earth thumping beats.

Specifications:

• Speaker Size (In): 15
• Watts RMS: 2500
• Watts Peak: 7500
• Impedance: D1 / D2
• VCD (In): 4
• Piston Diameter (In): 12.75
• Fs (Hz): 34
• Qms: 6.63
• Qes: 0.669
• Qts: 0.608
• Vas (Liters): 62.66
• Xmech (MM): 100
• Xmax (MM): 31
• Frame OD (In): 15.375
• Frame OD w/Gasket (In): 15.55
• Mounting Diameter (In): 13.78
• Mounting Depth (In): 11.5
• Motor Diameter (In): 9.45
• Motor Depth (In): 5.8
• Ported Enclosure (CuFt): 3.0 - 6.0
