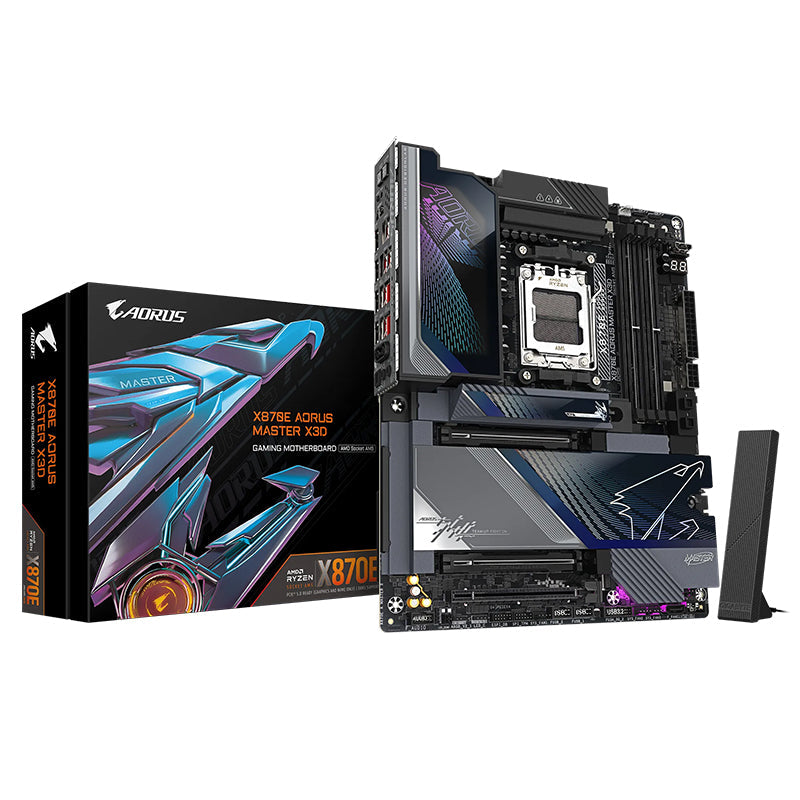

Gigabyte X870E Aorus Master X3D AM5 ATX Motherboard (X870E AORUS MASTER X3D)

Chipset

AMD X870E

Memory

Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO „¢) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon „¢ Graphics support+ASMedia USB4 ® Controller:

- 2 x USB4 ® USB Type-C ® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon „¢ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek ® ALC1220 CODEC

The front panel line out jack supports DSD audio.

ESS ES9118 DAC chip

Support for DTS:X ® Ultra

High Definition Audio

2/4/5.1-channel

You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek ® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)

Realtek ® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

Wireless Communication module

MediaTek Wi-Fi 7 MT7927, RZ738

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

*** Bluetooth version may change with updates. See the Wi-Fi chip vendor €™s website for details.

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen „¢ 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen „¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen „¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

AMD Ryzen „¢ 9000/7000 Series Processors support PCIe 5.0 x8 mode

The PCIEX8 slot becomes unavailable when an AMD Ryzen „¢ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

AMD Ryzen „¢ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen „¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen „¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

AMD Ryzen „¢ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

The M2B_CPU connector shares bandwidth with the ASMedia USB4 ® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4 ® controller operate at up to x2 bandwidth.

When using an AMD Ryzen „¢ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4 ® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs

2 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 5 is only available on AMD Ryzen „¢ 9000 Series Processors.

RAID 0 and RAID 1 support for SATA storage devices

USB

CPU+ASMedia USB4 ® controller:

- 2 x USB4 ® USB Type-C ® ports on the back panel

CPU:

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset:

- 1 x USB Type-C ® port on the back panel, with USB 3.2 Gen 2x2 support

- 1 x USB Type-C ® port on the back panel, with USB 3.2 Gen 2 support

- 1 x USB Type-C ® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)

For precautions regarding the fast charging function, refer to "USB Type-C ® Header" in Chapter 2-7, "Internal Connectors."

- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x PCIe power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

1 x system fan extension cable header (can extend three system fan headers through one cable)

1 x system fan/water cooling pump header

4 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

5 x M.2 Socket 3 connectors

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB Type-C ® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note)

1 x chassis intrusion header

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

(Note) Actual support may vary by CPU.

Back Panel Connectors

1 x Q-Flash Plus button

1 x Clear CMOS button

1 x reset button

1 x power button

1 x HDMI port (Note)

2 x USB4 ® USB Type-C ® ports (DisplayPorts (Note))

1 x USB Type-C ® port, with USB 3.2 Gen 2 support

1 x USB Type-C ® port, with USB 3.2 Gen 2x2 support

7 x USB 3.2 Gen 2 Type-A ports (red)

2 x RJ-45 ports

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

(Note) Actual support may vary by CPU.

I/O Controller

iTE ® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection

BIOS

1 x 512 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton ® Internet Security (OEM version)

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
