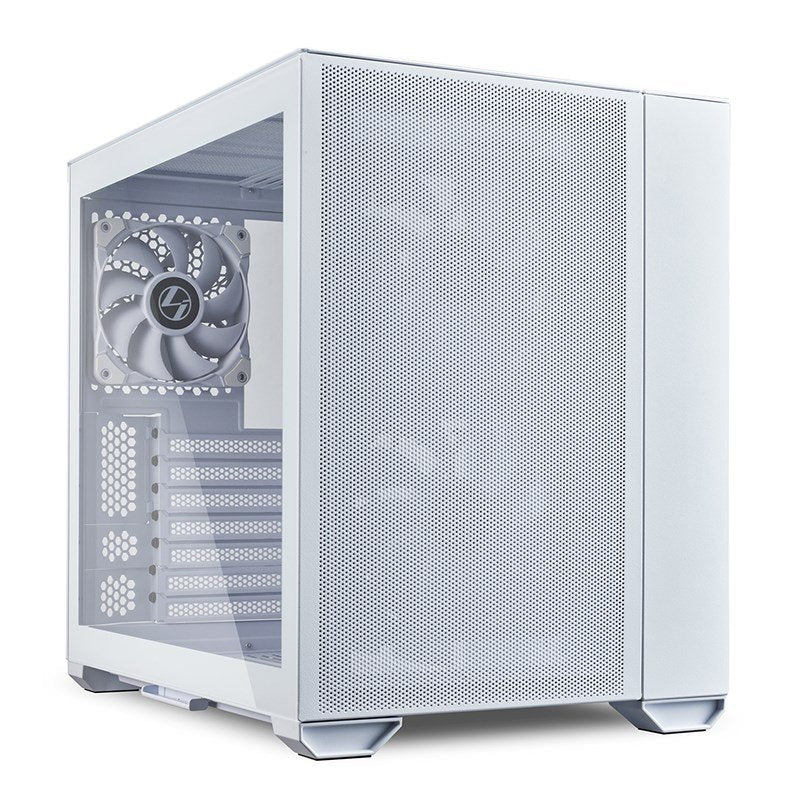

Lian Li O11 Air Mini Mesh TG E-ATX Chassis - White

Dimension

(D) 400 X (W) 288 X (H) 384 mm

Material

4mm Aluminum Panel

0.8mm Mesh Panel

4.0 mm Tempered Glass

Motherboard support

E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX

PSU support

ATX (Max. 200 mm)

Included fan

(Front) 2 X 140mm PWM Fan

(Rear) 1 X 120mm PWM Fan

Fan support

(Top) 120mm X3 / 140mm X2

(Side) 120mm X2

(Bottom) 120mm X2/ 140mm X2

(Front) 120mm X2/ 140mm X2

(Rear)120 mm X1

Radiator support

(Top) 240mm or 280mm

(Side) 240mm

(Bottom) 240mm or 280mm

(Front) 240mm or 280mm

* Note: An ATX motherboard with a 240/280mm AIO will not fit at the top.

**Note: A Micro ATX motherboard is required to fit 240/280mm AIO at the top.

Drive support

6 X 2.5 € SSD or 3 X 2.5 € SSD + 3 X 3.5 € HDD

GPU length clearance

362 mm

CPU height clearance

170 mm

Expansion slots

7 or 5 (depends on the back panel)

I/O ports

2 X USB 3.0

1 X USB 3.1 Type-C

1 X HD Audio

Dust filter

1 × removable bottom dust tray
