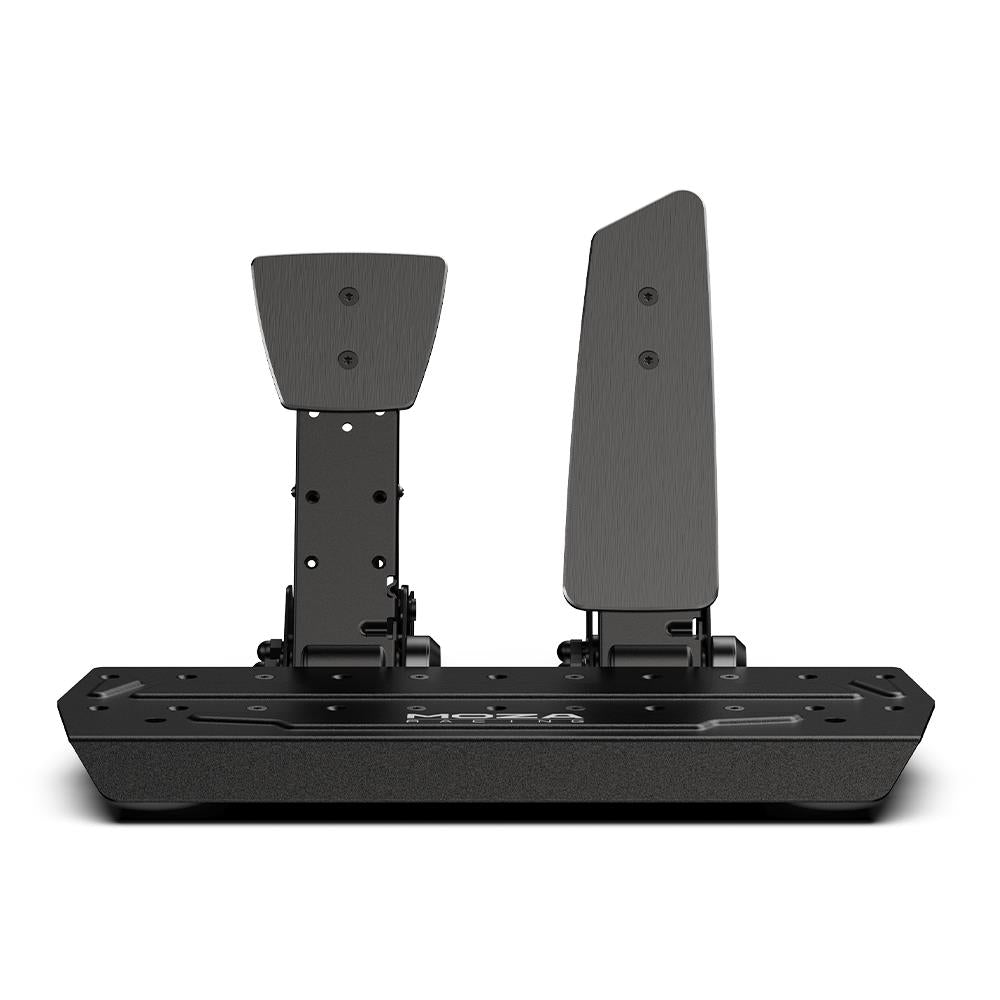

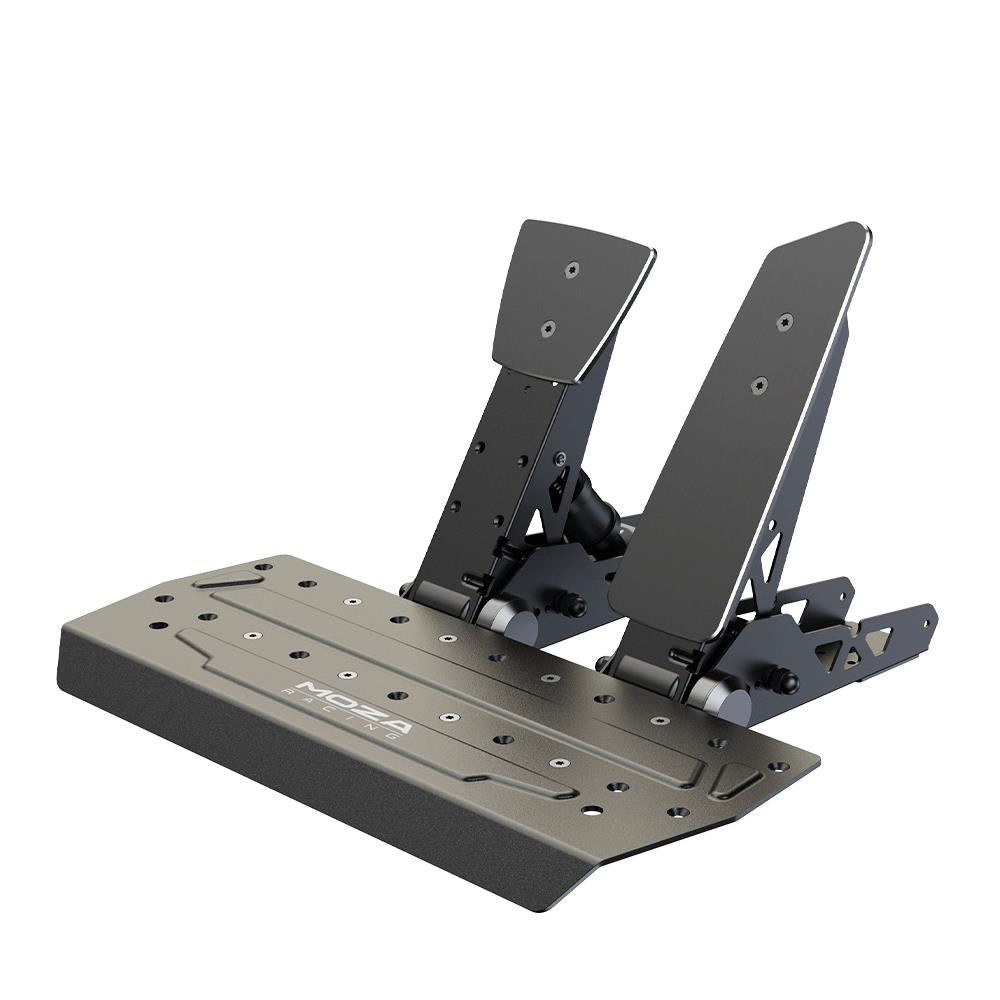

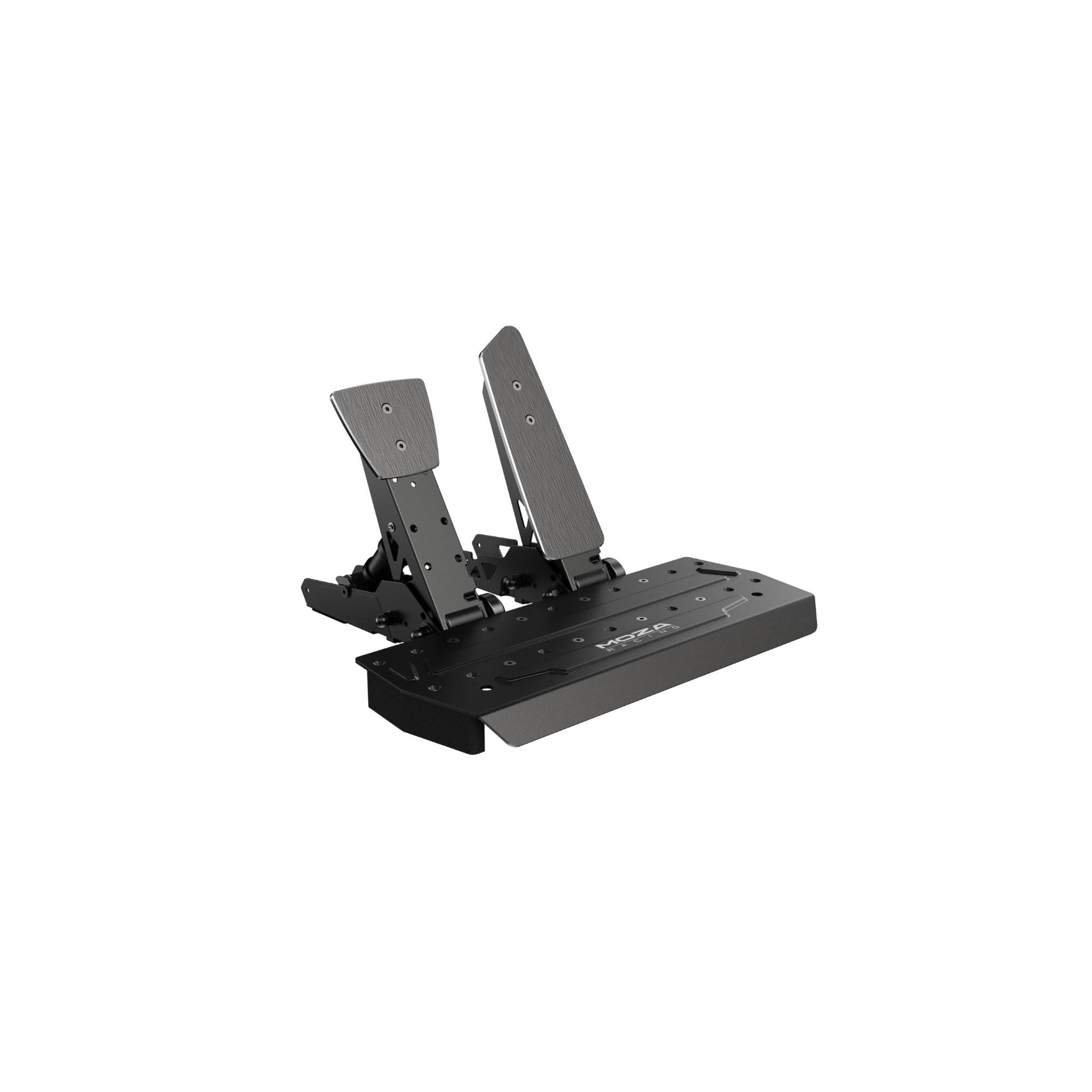

Moza SR-P Pedals (Throttle & Brake)

Clutch not included. Not compatible with SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
SR-P Pedals are compatible with other products as you can use them with USB together with any other brand.

Upgrade your racing experience with the MOZA SR-P pedals, designed for top performance and precision. Crafted with high-strength steel and featuring a high-precision pressure sensor capable of detecting up to 75KG, these reliable pedals ensure solid responsive inputs. A 16-bit high-precision magnetic encoder captures every movement with exceptional detail. Customize your setup with adjustable pedal spacing for optimal comfort and directly connect it to your PC via USB for seamless integration. Experience smooth and controlled braking with the combined braking spring and damping block.

Key Features

Made with High-strength Steel
The pedal is machined with high-strength steel, giving superior quality and endurance.

Organ Type Accelerator Pedal
The organ-type accelerator pedal allows the driver's foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.

High-Precision Load Cell: Maximum Capacity of 100 KG
The MOZA SR-P pedals feature high-tech load cell sensors with a 100KG capacity. These sensors detect precise braking pedal pressure, allowing users to achieve the ideal braking force by controlling pressure application.

16-bit High Precision Magnetic Encoder
The brake, clutch and throttle pedals all use 16-bit precision magnetic encoder with 65536 PPR resolution, a much higher resolution and more stable than a Hall sensor.

Dual Sensor Fusion Algorithm
The brake utilizes a pressure and angle sensor, allowing fine tuning of braking. The initial stage is dominated by the angle sensor, allowing racers to control the braking angle, the mid and last stage is controlled by the pressure sensor, which makes the pedal easier to control.

Direct connection with PC through USB
The MOZA SR-P Pedals effortlessly link to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. Its universal compatibility with all sim racing gear ensures a smooth and hassle-free experience for all racing enthusiasts.

Detachable Pedal Design
Pedals can be detached and mounted onto other professional brackets with ease. For hardcore users, the pedals can also be reversed.

Pedal Output Curve Adjustment
MOZA's Pit House allows for easy configuration of the pedal output curves accommodating diverse needs and preferences.

Technical Specifications:

Material High-strength steel
Plate Material High-strength steel
Colour Black
Brake Sensor Load cell + angle sensor
Max Capacity 100KG
Throttle Sensor Angle sensor
Clutch Sensor Angle sensor
Angle Sensor Resolution 16-bit (65536ppr)
Pedal Spacing Adjustable
Pedal Plate Height Adjustable
Pedal Connection Port USB
Pedal Travel Software Adjustment Yes
Pedal Travel Reverse Function Yes

What's in the box:

Moza SR-P Pedals (No clutch)
Type A to Type B USB Cable
Toolkit
