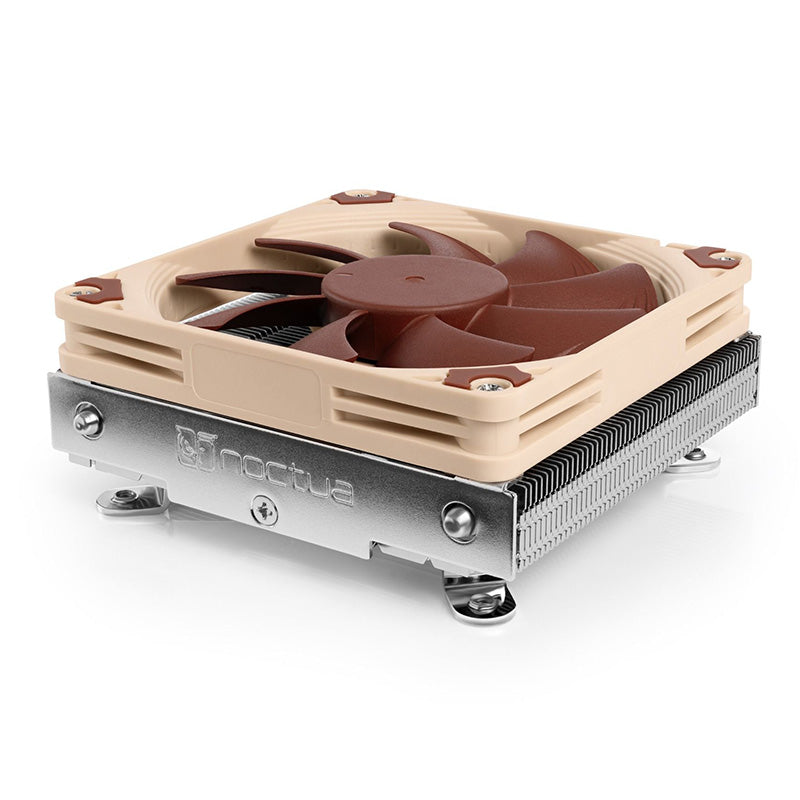

Noctua Low Profile Intel CPU Cooler (NH-L9i)

Socket compatibility

Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, AMD AM4 with NM-AM4-L9aL9i

Height (without fan)

23 mm

Width (without fan)

95 mm

Depth (without fan)

95 mm

Weight (without fan)

320 g

Height (with fan)

37 mm

Width (with fan)

95 mm

Depth (with fan)

95 mm

Weight (with fan)

385 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

59

Max. TDP

see NSPR

Fan compatibility

92x92x14mm, 92x92x25mm

Scope of delivery

NF-A9x14 PWM premium fan

Low-Noise Adaptor (L.N.A.)

NT-H1 high-grade thermal compound

SecuFirm2 „¢ Mounting Kit

Screws for 92x92x25mm fans

Noctua Metal Case-Badge

FAN SPECIFICATION

Model

Noctua NF-A9x14 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

2500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1800 RPM

Min. rotational speed @ 20% PWM (+/-20%)

600 RPM

Max. airflow

57,5 m ³/h

Max. airflow with L.N.A.

40,8 m ³/h

Max. acoustical noise

23,6 dB(A)

Max. acoustical noise with L.N.A.

14,8 dB(A)

Input power (max.)

2,52 W

Voltage range

12 V

MTTF

> 150.000 h

Notes and Warnings

The NH-L9i is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9i is recommended for your CPU.
