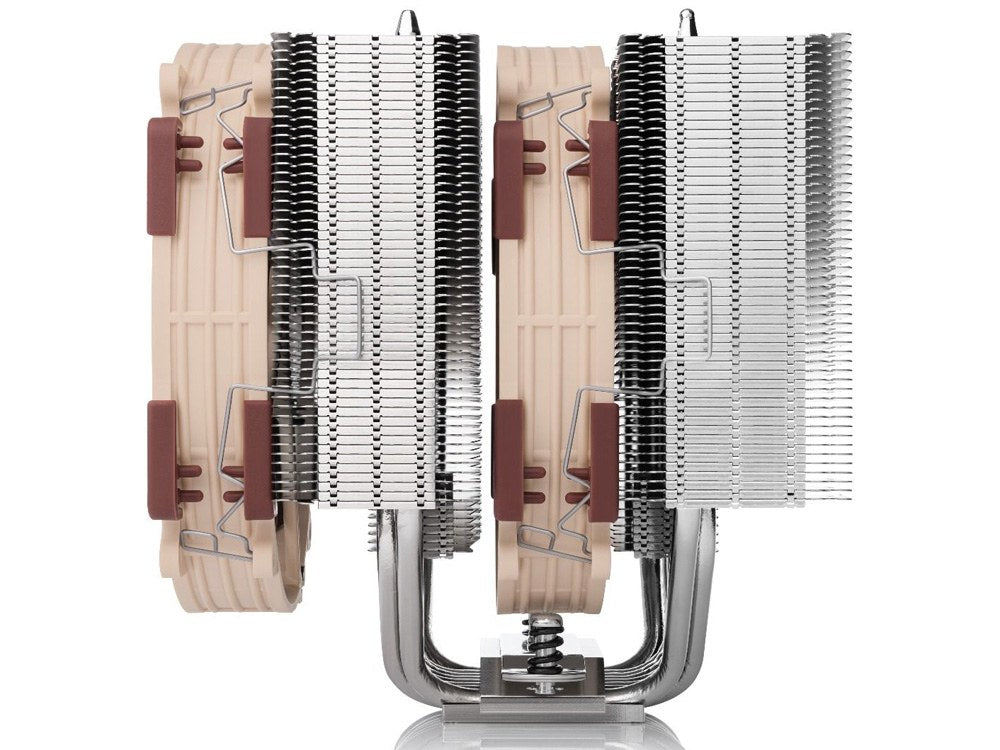

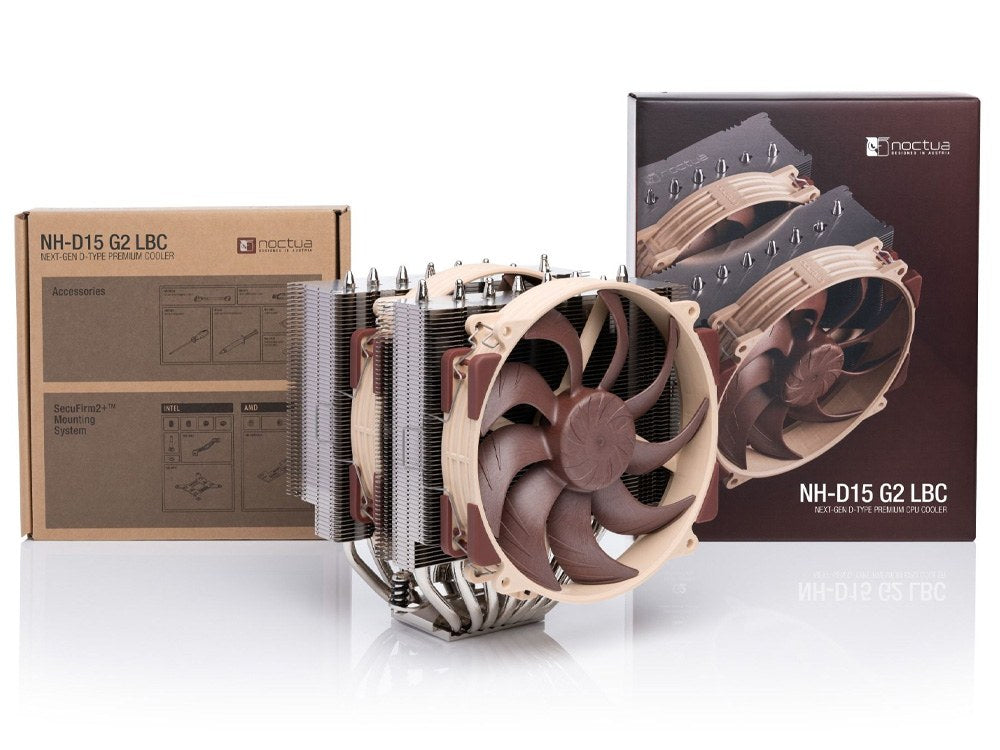

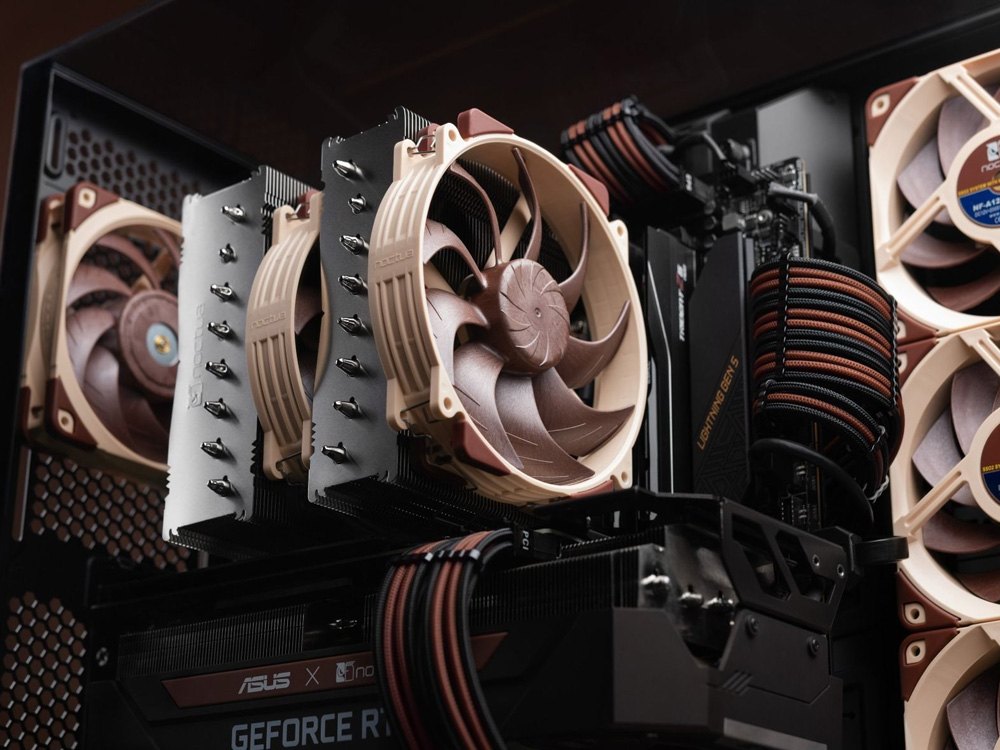

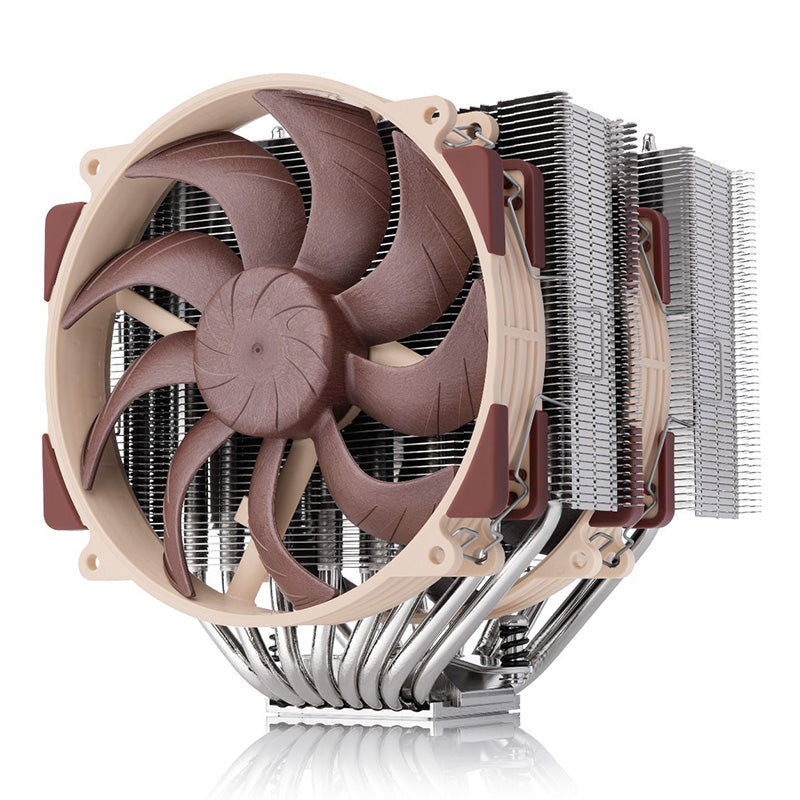

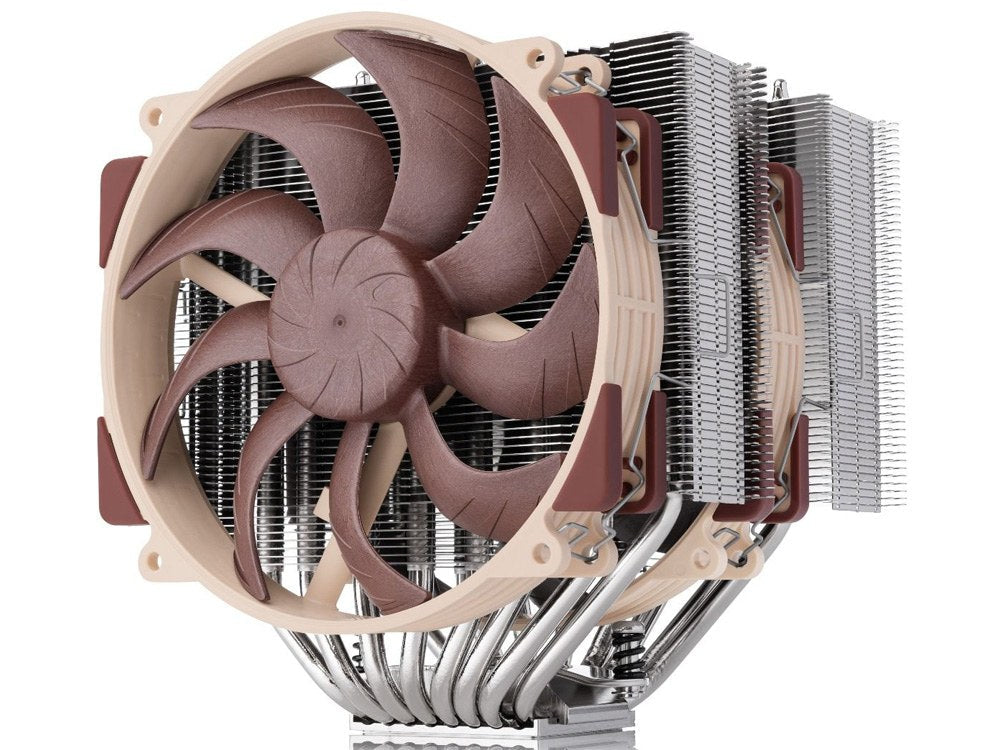

Noctua NH-D15 G2 Multi-Socket PWM CPU Cooler AM4/AM5
Noctua NH-D15 G2 Multi-Socket PWM CPU Cooler AM4/AM5
SPECIFICATIONS:
|
COOLER SPECIFICATION |
|
|
Socket compatibility |
AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 |
|
Height (without fan) |
168 mm |
|
Width (without fan) |
150 mm |
|
Depth (without fan) |
127 mm |
|
Weight (without fan) |
1180 g |
|
Height (with fan) |
168 mm |
|
Width (with fan) |
150 mm |
|
Depth (with fan) |
152 mm |
|
Weight (with fan) |
1525 g |
|
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
NSPR |
228 |
|
Fan compatibility |
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 (optional NA-SFC12 fan clips required) |
|
Scope of delivery |
2x NF-A14x25r G2 PWM premium fan 2x NA-RC16 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H2 high-grade thermal compound NA-TPG1 thermal paste guard for AM5 NA-CW1 cleaning wipe SecuFirm2+ multi-socket mounting system 4x NM-ISW1 shim washers for LGA1700 NM-SD1 Torx® T20 screwdriver Noctua metal case-badge |
|
FAN SPECIFICATION |
|
|
Model |
2x NF-A14x25r G2 PWM |
|
Bearing |
SSO2 |
|
Max. rotational speed (+/- 10%) |
1500 RPM |
|
Max. rotational speed with L.N.A. (+/- 10%) |
1250 RPM |
|
Max. airflow |
155.6 m³/h |
|
Max. airflow with L.N.A. |
127.1 m³/h |
|
Max. acoustical noise |
24.8 dB(A) |
|
Max. acoustical noise with L.N.A. |
19.7 dB(A) |
|
Blade geometry |
Progressive-Bend impeller |
|
Acoustical noise |
24.8 dB(A) |
|
Input power (max.) |
2.28 W |
|
Voltage range |
12 V |
|
MTTF |
> 150.000 h |
