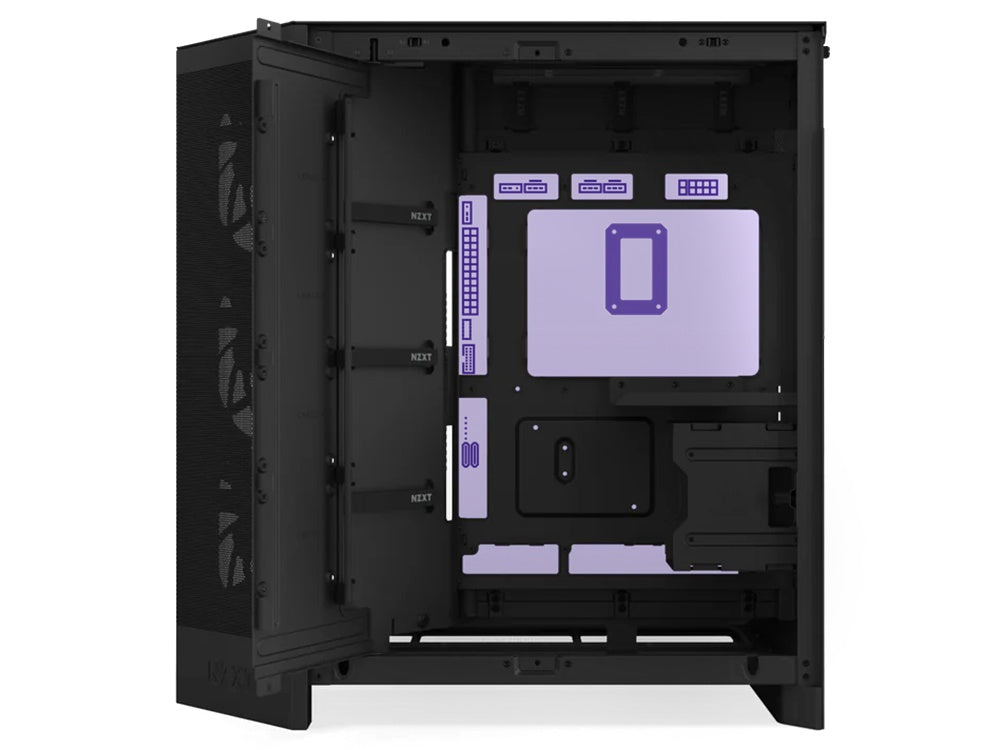

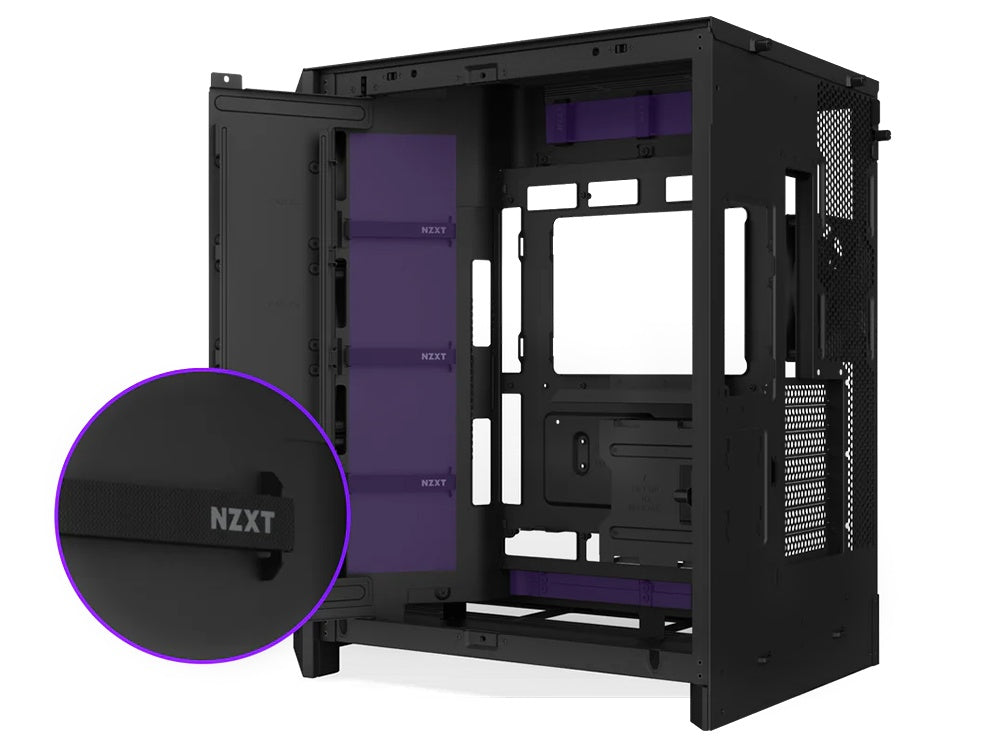

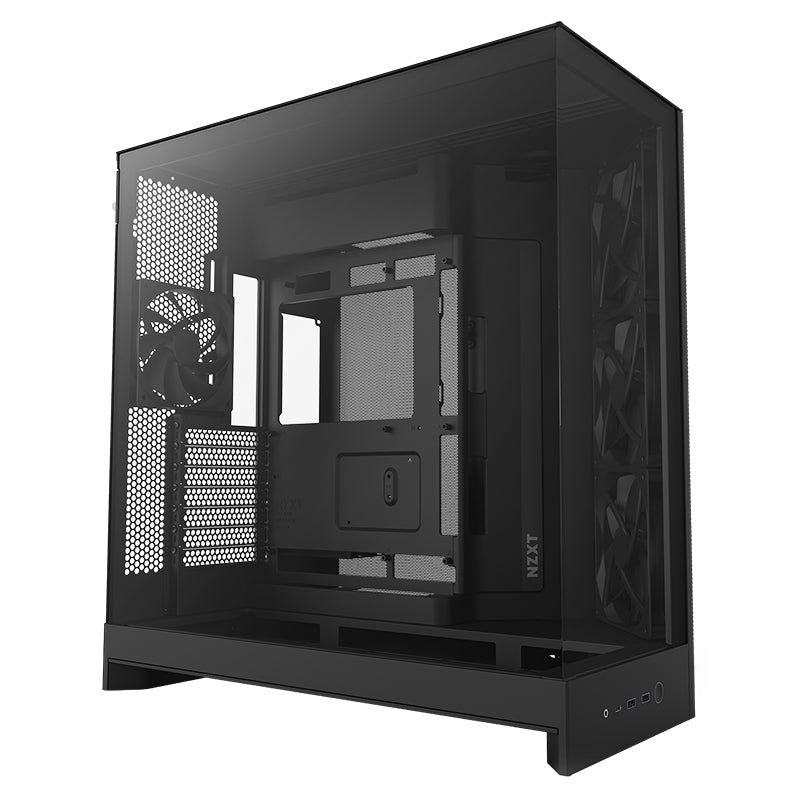

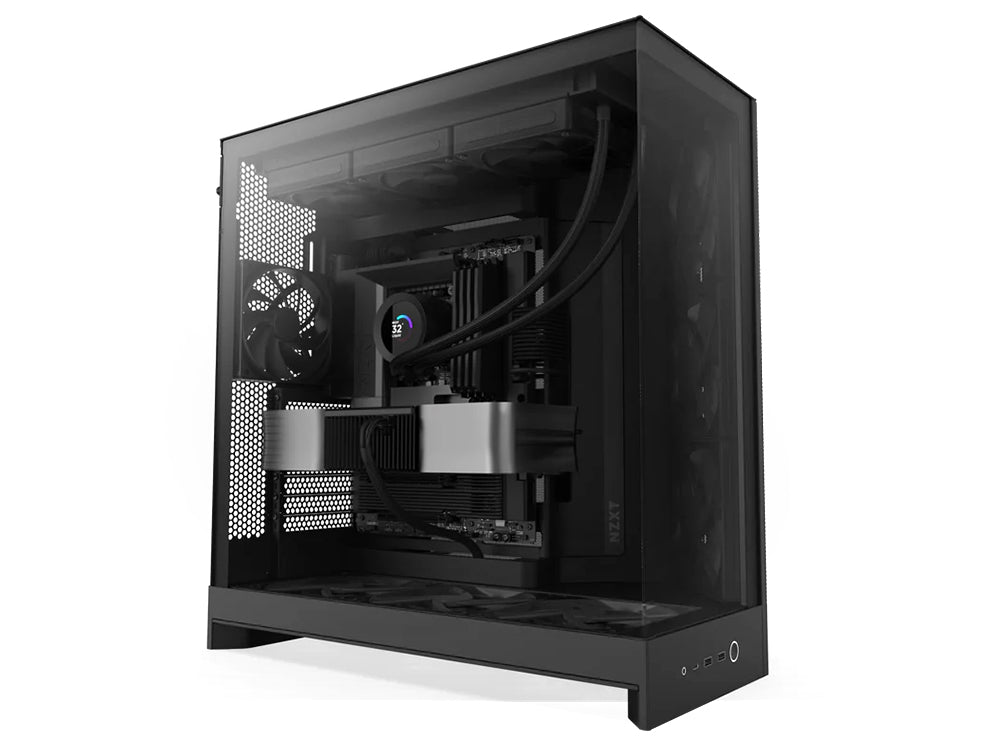

NZXT H9 Flow Mid-Tower ATX Case
NZXT H9 Flow Mid-Tower ATX Case
SPECIFICATIONS:
|
DIMENSIONS |
|
|
Height |
506 mm (19.9 in) |
|
Width |
315 mm (12.4 in) |
|
Depth |
481 mm (18.9 in) |
|
Volume |
76.7 L |
|
Weight |
12.46 kg (27.47 lb) |
|
GENERAL |
|
|
Enclosure Type |
Mid-tower |
|
Motherboard Compatibility |
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX |
|
Rear-Connecting Motherboard Support (BTF, Project Zero) |
Yes (ATX, Micro-ATX) |
|
Materials |
SGCC steel, tinted tempered glass |
|
CLEARANCE |
|
|
CPU Cooler Height |
165 mm |
|
GPU Length |
Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) |
|
PSU Length |
200 mm |
|
Top Radiator & Fan Thickness |
Up to 80 mm (360 mm) Up to 62 mm (420 mm) |
|
FRONT I/O PORTS |
|
|
USB 3.2 Type-A |
2 |
|
USB 3.2 Gen2x2 Type-C |
1 |
|
Headset Jack |
1 |
|
EXPANSION SLOTS |
|
|
Standard |
7 |
|
Vertical |
0 |
|
DRIVE BAYS |
|
|
2.5" |
4+2 |
|
3.5" |
2 |
|
FAN SUPPORT |
|
|
Front-Right |

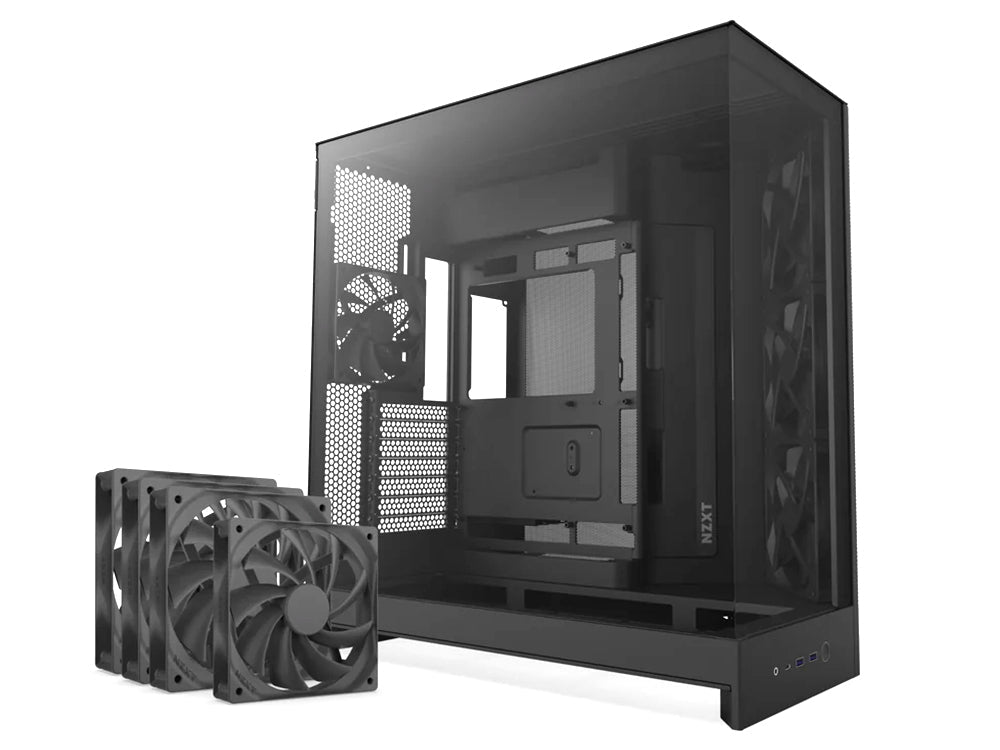

3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included) |
|
Top |
3 x 120 mm / 3 x 140 mm |
|
Bottom |
3 x 120 mm / 3 x 140 mm |
|
Rear |
1 x 120 mm (1 x F120Q (CV) included) |
|
RADIATOR SUPPORT |
|
|
Front-Right |
Up to 420 mm |
|
Top |
Up to 420 mm |
|
Bottom |
Up to 360 mm |
|
Rear |
Up to 120 mm |
|
FAN SPECS - F140Q (CV) |
|
|
Model |
F140Q (CV) |
|
Speed |
1,350 ± 150 RPM |
|
Airflow |
100.25 CFM |
|
Static Pressure |
1.4 mmH2O |
|
Noise |
22.9 dBA |
|
Fan Connector |
3-pin |
|
FAN SPECS - F120Q (CV) |
|
|
Model |
F120Q (CV) |
|
Speed |
1,350 ± 150 RPM |
|
Airflow |
60.2 CFM |
|
Static Pressure |
1.05 mmH2O |
|
Noise |
24.1 dBA |
|
Fan Connector |
3-pin |
|
OTHERS |
|
|
What's in the Box |
H9 Flow x 1 Pre-installed F140Q (CV) x 3 Pre-installed F120Q (CV) x 1 Installation accessories x 1 User guide x 1 |
