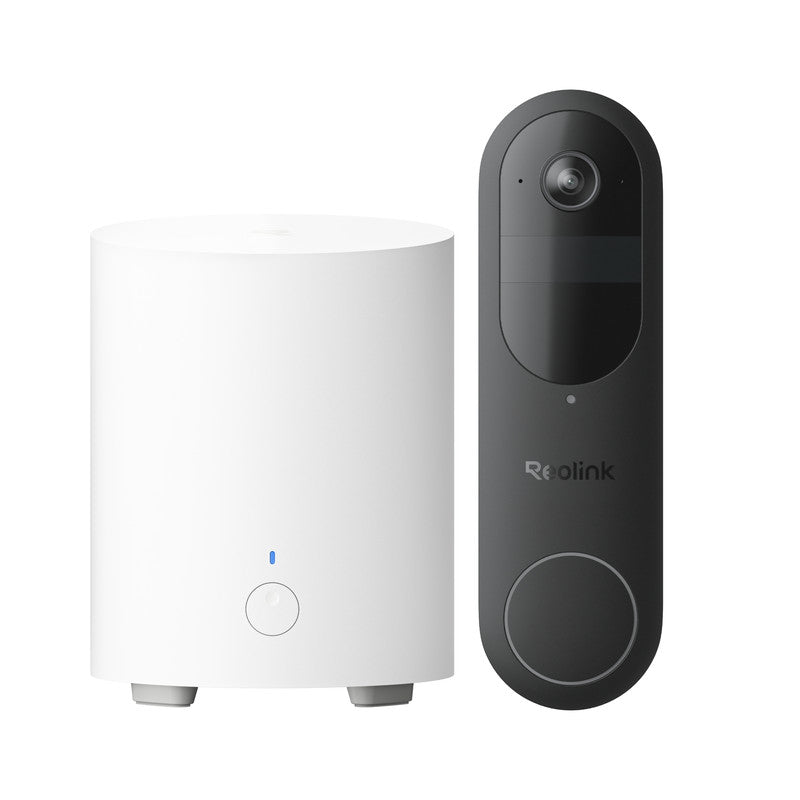

Reolink Battery Doorbell System with Hub Mini (Black)

Stay connected, secure, and powered with Reolink Doorbell with Hub mini, a wireless battery doorbell camera system for your front door. Featuring 1:1 aspect ratio, it provides a head-to-toe view for wider coverage. With smart detection for people, vehicles, and package, you can receive more accurate alerts. 2.4/5GHz dual-band Wi-Fi ensures more stable network connection, keeping you connceted from anywhere.

DIY Your Own Camera System

Reolink Home Hub connects up to 8 cameras (except 4G cameras), making it easy to manage multiple cameras simultaneously from a single, centralized hub. This hub is ideal as a storage, alarm, and management center for your DIY camera system.

No-Cost Local Storage Solution
Enjoy encrypted local storage without additional fees. Start with an included 128GB microSD card and expand up to 2×512GB with two card slots for all your needs.

1:1 Aspect Ratio + 4MP HD

Experience 2K HD with a unique 1:1 aspect ratio, delivering a 150°x150°x180° head-to-toe view for exceptional front door visibility.

Smart Detection + Instant Alerts

When people, vehicles, or packages are detected, you will be notified by the real-time notification. Fear no more porch pirates, your packages are always under monitoring.

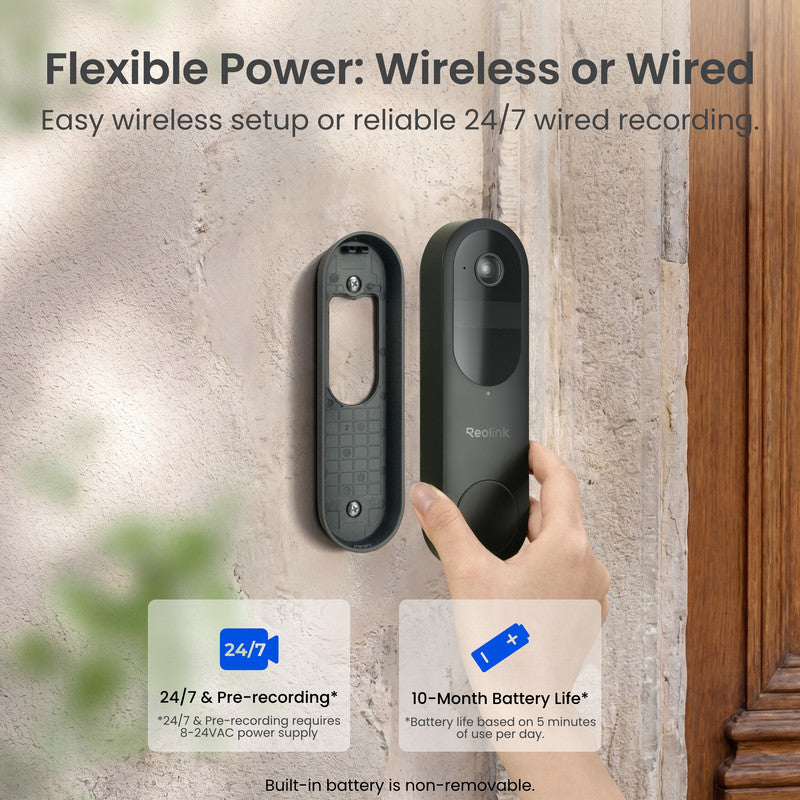

Rechargeable Battery + Hardwire

Flexible power options. Use the rechargeable battery or hardwire to existing wiring. The hardwire option supports mechanical chimes. (Power source: 8~24V, 5VA-40VA)

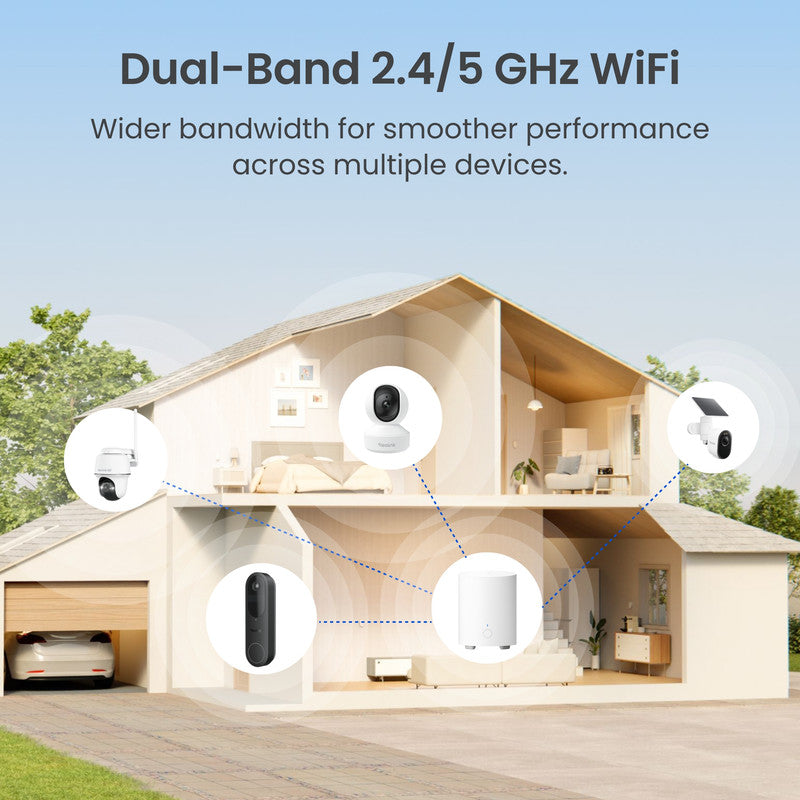

2.4/5GHz Wi-Fi for Reliable Connection

Enjoy the reliability of 2.4/5GHz dual-band Wi-Fi for uninterrupted surveillance and smooth live viewing anytime, anywhere.

Visitor Notification

Receive instant push notifications and even a video call when a visitor presses the doorbell. See their faces on the screen without having to open the door.

Multiple Chime Options

Whether you opt for Reolink Chime, a traditional mechanical chime, Google Assistant, or Reolink Home Hub, rest assured that our doorbell will complement your home environment.

Have the doorbell speak for you with preset voice messages.

Set up pre-recorded voice messages for quick reply when a visitor presses the doorbell. Save your time and let the doorbell speak for you.

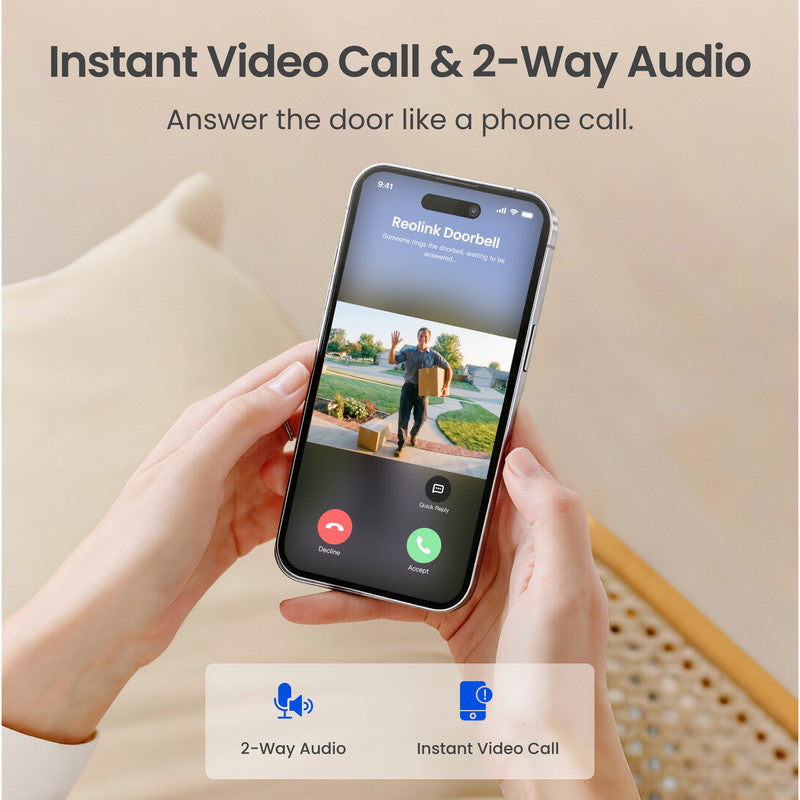

Two-Way Audio

Talk and listen to anyone in front of your camera in real time, from anywhere. Deter intruders and effortlessly communicate with delivery personnel.

Enhanced Nighttime Surveillance

Stay vigilant around the clock with infrared LEDs, providing clear and crisp images at night, ensuring reliable monitoring and security.

Outdoor-Ready Waterproof Design

Designed to withstand the elements, this IP65 certified weatherproof camera provide reliable outdoor protection against dust and water.

Specifications:

Doorbell

Image Sensor: 1/3.11" CMOS sensor

Resolution: 2048x2048 (4 megapixels) at 15 frames/sec

Lens: f=1.2mm F=1.8 , fixed

Field of View: • Horizontal: 150°
• Vertical: 150°
• Diagonal: 180°

Audio: Two-way audio, noise reduction, echo suppression

Battery: 7000mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)

Hardwired: 8-24V AC, 24V DC

Power Port: USB Type-C port

SD Card Slot: Supports Max. 256GB microSD card

Audio In/Out: Built-in 2 microphones & a speaker

Operating Frequency: 2.4GHz/5GHz

Smart Alarm: Motion detection/person/vehicle/package detection; visitor notification

Recording Modes: Motion-triggered recording

Smart Home Compatibility: Google Assistant, Alexa

Operating Temperature: -10°C~55°C (14°F~131°F)

Operating Humidity: 10% ~ 90%

Weatherproof: IP65 certified

Dimensions: 160.0 x 48.0 x 29.5 mm

Weight: 231g

Home hub mini

Camera Supported;Up to 8 Cameras
Compatible DeviceReolink Battery-Powered Wi-Fi
microSD Card Slot:Up to 1TB microSD card
SATA:No
24/7 recording:Yes (fluent mode)
Wireless Standard:IEEE 802.11 a/b/g/n/ac
Operating Frequency:2.4/5GHz
Wireless Security:WPA/WPA2
HDMI:No
USB:USB 2.0 (for data transfer)
Speaker:Yes (up to 110dB)
Ethernet:10M/100M bit RJ45 port for WAN
Live View/Playback :ResolutionUp to 12MP
PlaybackSmart: playback /quick event history
Sub-1G :Operating FrequencyNo
Power:DC 12V/1A
Network: ProtocolsTCP/IP, UDP, DHCP, P2P, UPNP,RTSP,RTMP, SMTP, SSL/TLS, DNS,DDNS, NTP，onvif
OS Supported:PC: Windows, Mac OS; smartphone:iOS, Android
Max. User Access:11 users (1 admin account & 10 sharedaccounts)
Smart HomeGoogle/Alexa

Dimensions:94x127.8mm

Weight:220g
