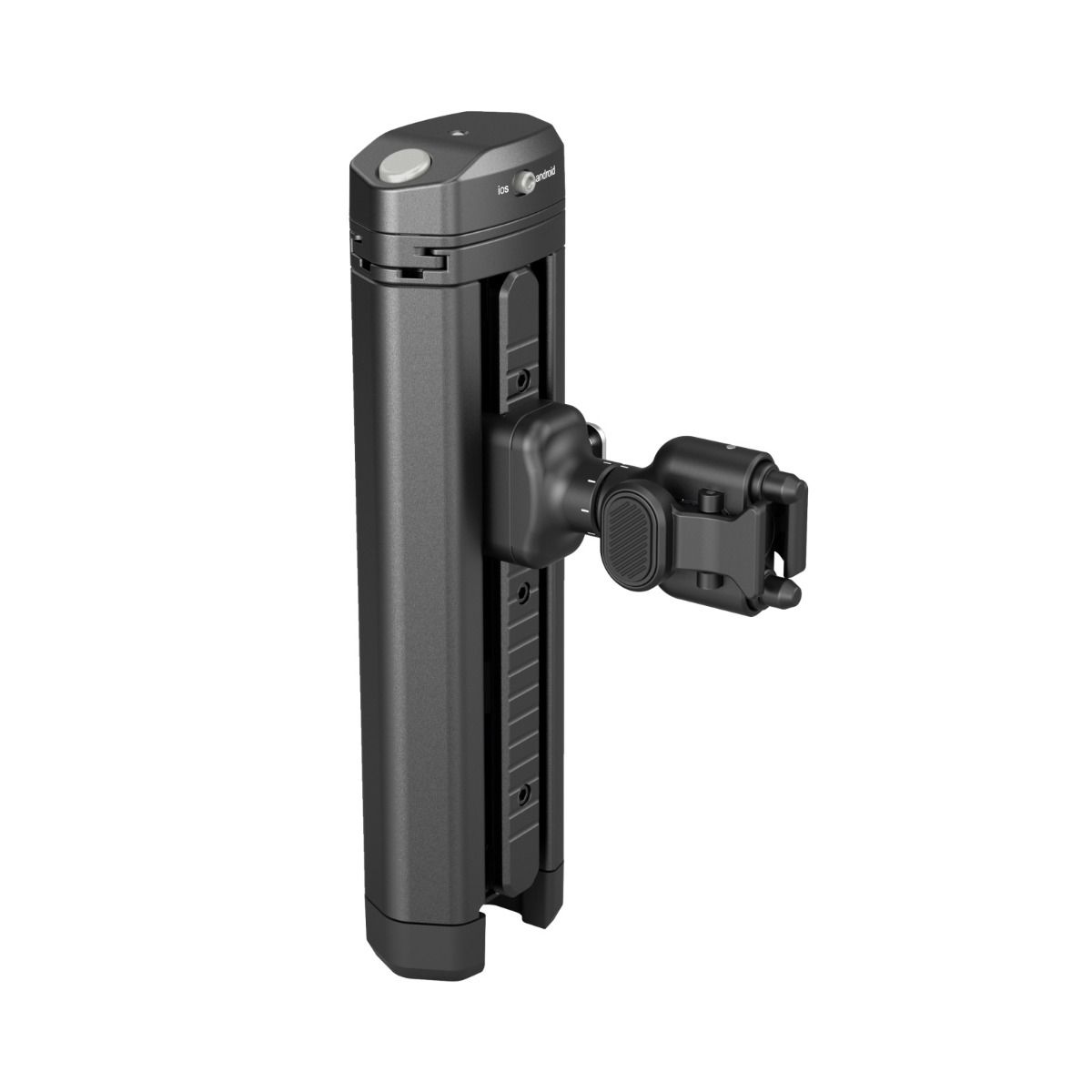

SmallRig Rotatable Side Handle with SSD Enclosure 4841

Offers an integrated grip solution for professional mobile video shooting. This handle allows for the attachment of an M.2 SSD drive to support external recording on smartphones. It also features a detachable wireless control enabling remote photo and video capturing, focus, and zoom. The rotatable handle adapter provides seamless switching between side and top handle modes and features infinite rotation. Equipped with bilateral quick-release interfaces, the adapter allows for swift tool-free assembly and adjustment.

- Integrated compact professional mobile video grip solution for smoother camera movements.

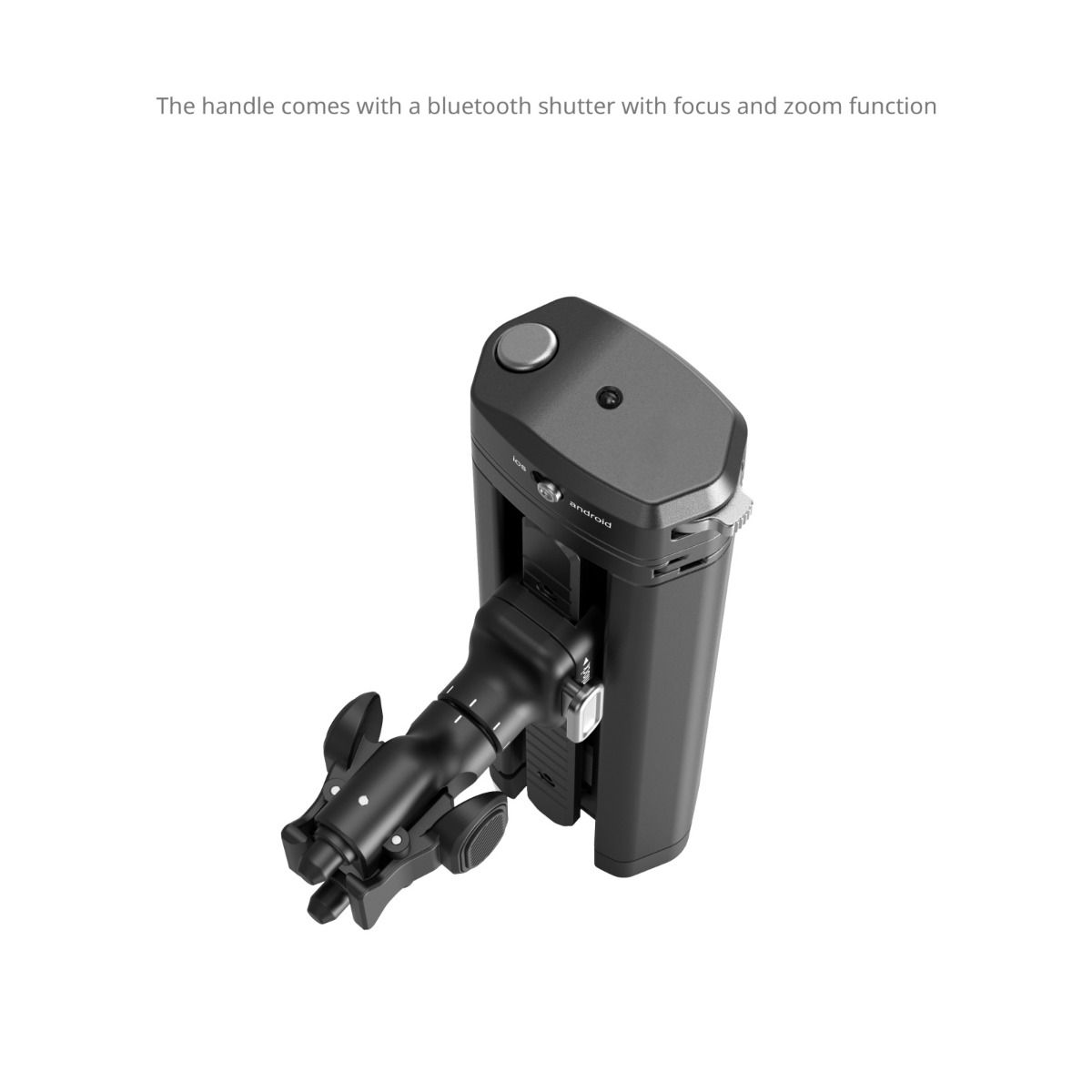

- Equipped with a wireless remote control module for one-touch shutter release and recording, and half-press the shutter for focus and zoom control.

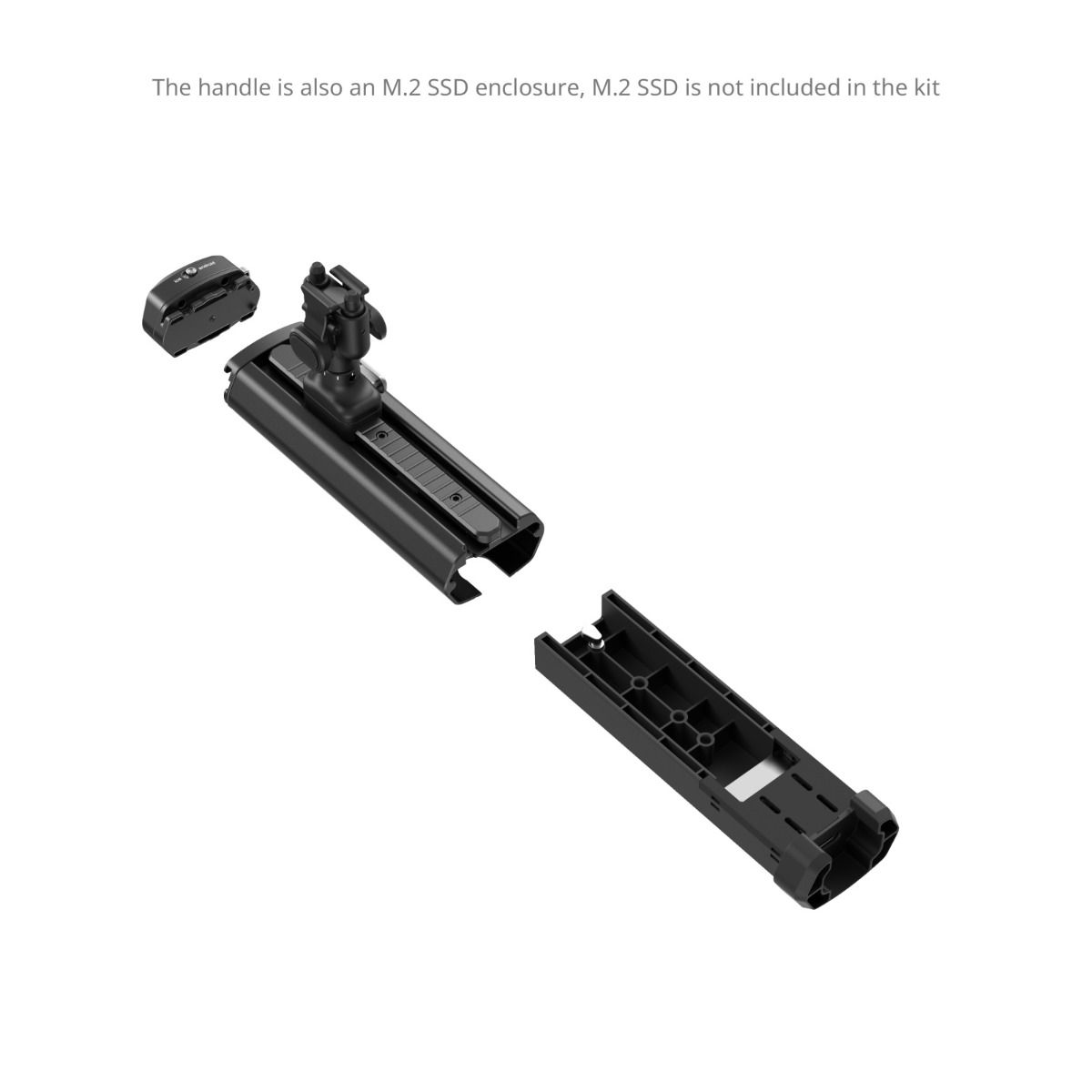

- Can accommodate an M.2 SSD for recording 4K ProRes videos on your phone.

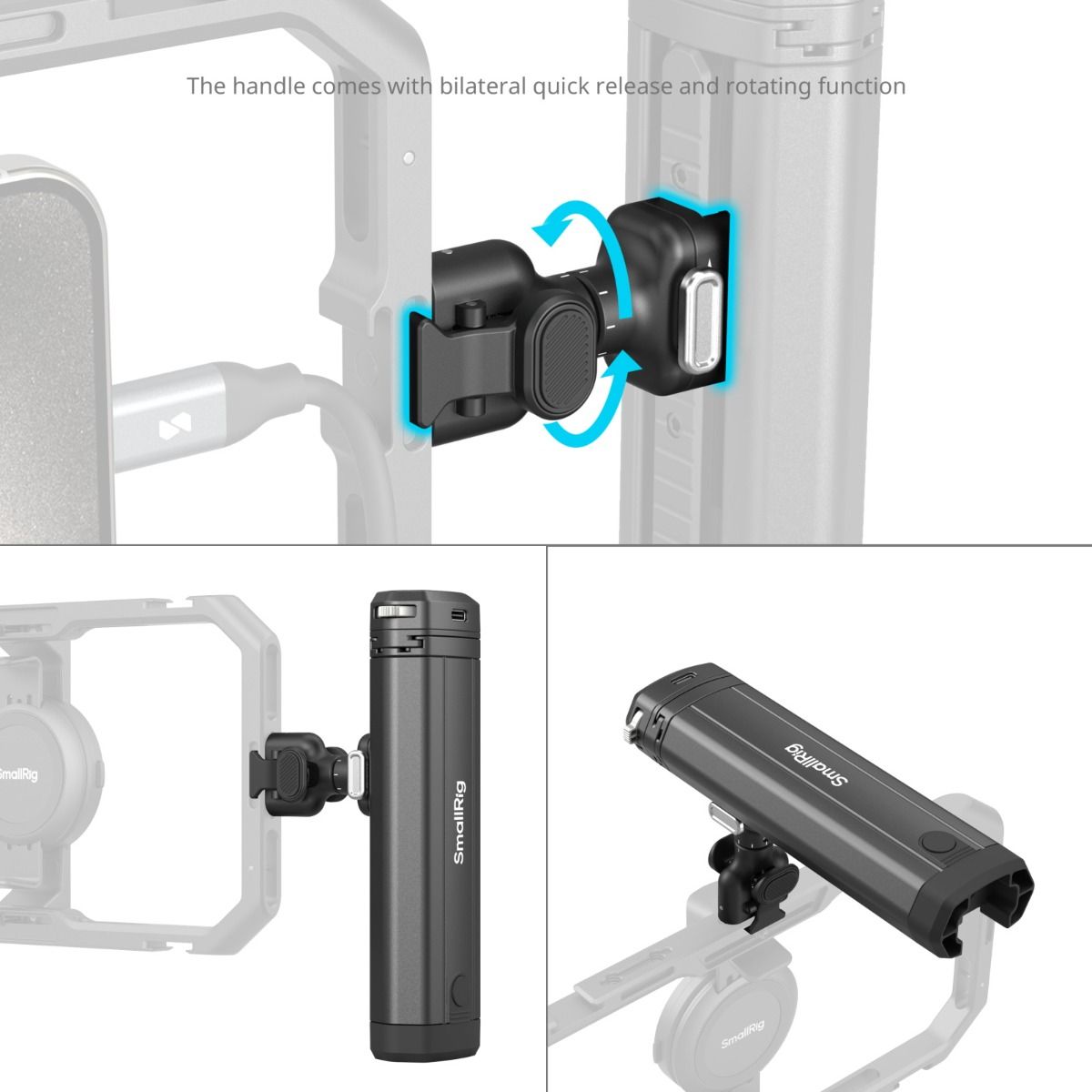

- Features infinite rotation with locking at any angle and seamless switching between side handle and top handle modes in a second.

- Features quick-release interfaces on both sides enabling swift tool-free assembly and adjustment.

IMPORTANT:
When the phone has ample battery (>30%) and the ambient temperature is below 30°C (86°F), it supports direct connection to M.2 SSD enclosure for recording videos in ProRes format. Refer to the following section for SSD models that can be directly read and written to. In case of low phone battery, ambient temperatures exceeding 30°C (86°F), or continuous recording for extended periods (over 40 minutes), please use an external power supply through a docking station to power the SSD, ensuring stable data transmission and smooth video recording.

Key Features:
- Product Dimensions: 148 x 81 x 42mm / 5.8 x 3.2 x 1.7 inch
- Product Weight: 191.7 ± 5g / 6.8 ± 0.2oz
- Material(s): Aluminum Alloy, Plastic, Silicone
- Operating Protocol: NVMe V1.3
- Built-in Interface: M.2 M-Key
- USB Protocol: USB3.1-C
- Compatible M.2 SSD: 2230, 2242, 2260, 2280
- Standby Power Consumption: 0.38W
- Operating Power Consumption: Varies Depending on SSD Models
- Transfer Rates: SuperSpeed (10Gbps) / Hi-Speed (5Gbps) / Full-Speed (480Mbps) / Low-Speed (12Mbps)
- Indicator Light Status: Blue LED Light: Always on (power on / sleep / safe ejection); flashes (read/write data)
Wireless Remote Control Parameters:
- Operating Power Consumption: ≤3mW
- Standby Power Consumption: ≤0.04mW
- Battery: 145mAh
- Voltage: 3.7V
- Current: 2mA
- Operating Temperature: -30℃ to 60℃ / -22°F to 140°F
- Wireless Control Distance: 10.0m / 32.8ft
- Wireless Frequency: 2.4G Hz

Compatibility:
Compatible with the following types of M.2 SSDs: 2230, 2242, 2260, 2280 Compatible with SmallRig HawkLock Quick Release Ecosystem for Smartphones The wireless remote control is compatible with iOS 17.0 and above, Android systems, and HarmonyOS

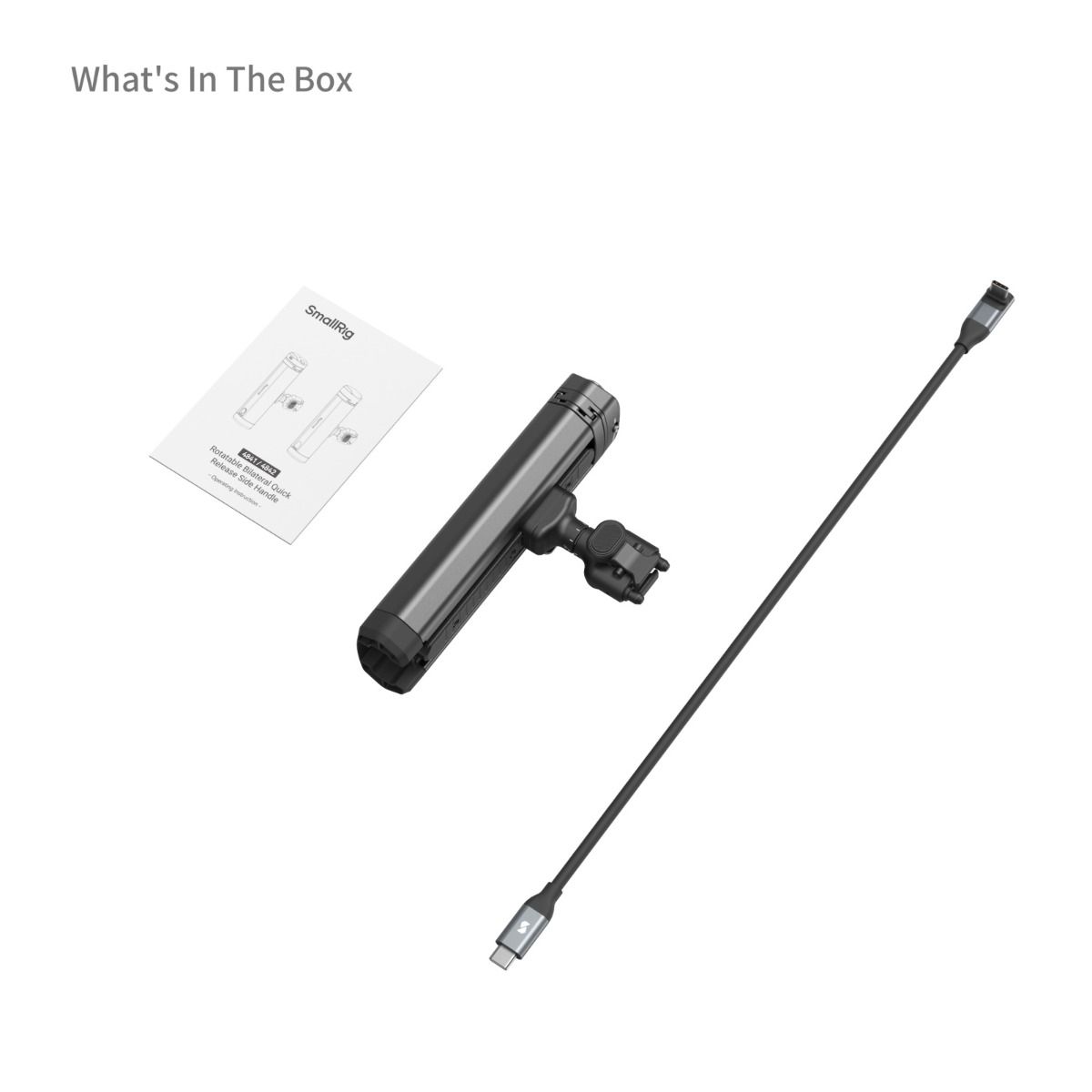

What’s in the box:
- 1 x Rotatable Bilateral Quick Release Side Handle with M.2 SSD Enclosure
- 1 x Multifunctional Data Cable
- 1 x User Manual
