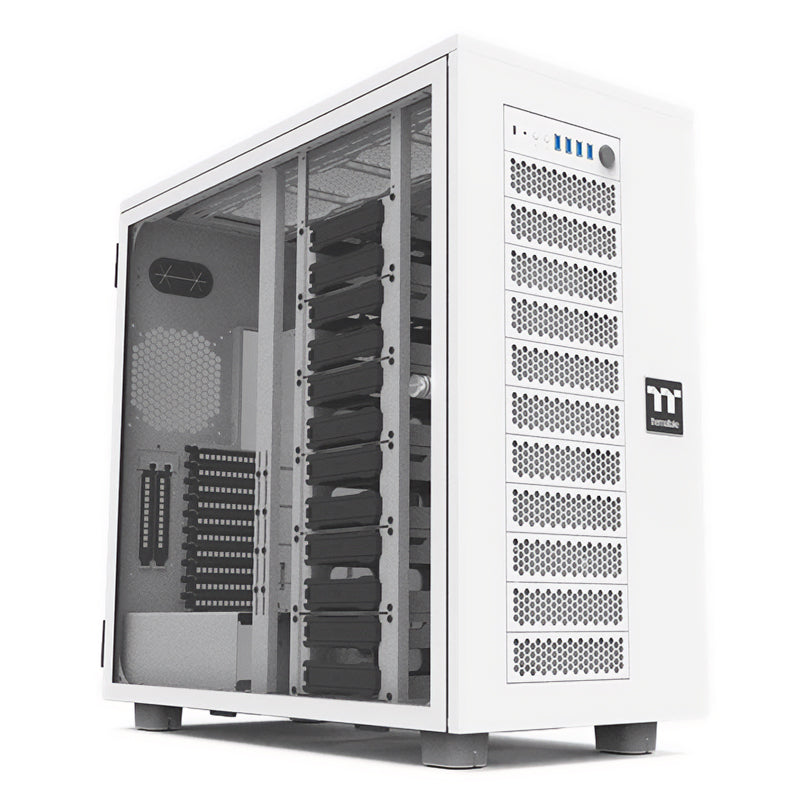

Thermaltake AX700 TG Super Tower XL-ATX Case - Snow (CA-11B-00F6WN-00)

Case Type

Super Tower

Dimensions

645 x 324.6 x 685 mm
(25.4 x 12.78 x 26.97 inch)

Side Panel

Steel + TG

Material

SPCC

Expansion Slots

10

Motherboard

6.7 € x 6.7 € (Mini ITX), 9.6 € x 9.6 € (Micro ATX), 12 € x 9.6 € (ATX) ,
12 € x 13 € (E-ATX) , 13.6 € x 10.4 € (XL-ATX) , SSI-CEB, SSI-EEB

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Front: 3 x 120mm , 3 x 140mm
Top: 4 x 120mm , 4 x 140mm
Rear: 1 x 120mm , 1 x 140mm
Bottom: 2 x 120mm , 2 x 140mm
Right Side: 8 x 120mm , 8 x 140mm

Radiator Support

AIO-Radiator Support:
Front: 1 x 360mm (MAX), 1 x 420mm (MAX)
Top: 1 x 360mm (MAX), 1 x 420mm (MAX)
Rear: 1 x 120mm , 1 x 140mm

DIY- Radiator Support:
Front: 1 x 360mm (MAX), 1 x 420mm (MAX)
Top: 1 x 480mm (MAX), 1 x 560mm (MAX)
Rear: 1 x 120mm , 1 x 140mm

Clearance

CPU cooler height limitation: 190mm
VGA length limitation:
360mm(with HDD rack) _x000B_
630mm(without HDD rack)
PSU length limitation: 220mm (with two bottom fans)
