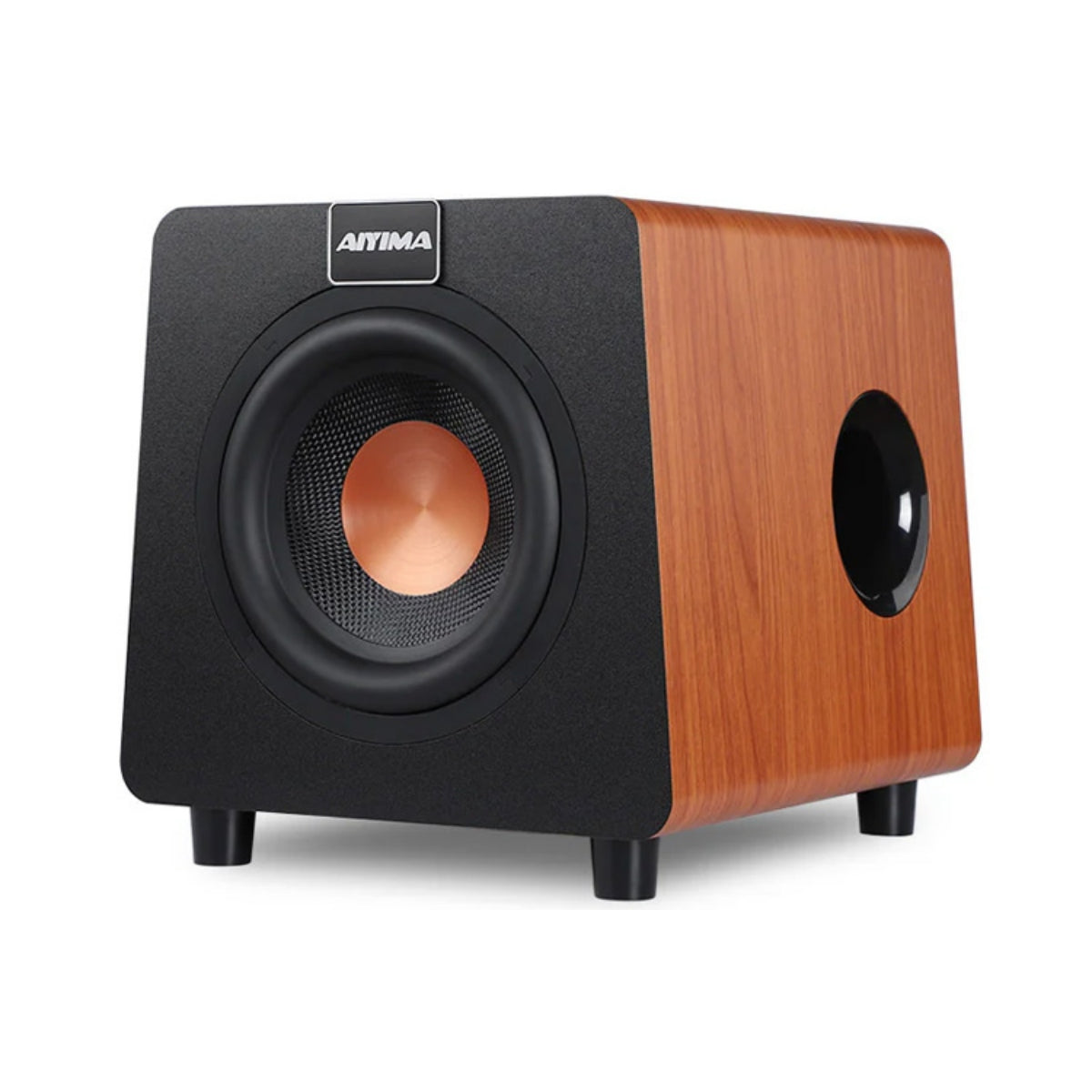

AIYIMA 800X 8" 150W Powered Subwoofer

8" 150W Subwoofer

A compact powered subwoofer with a trapezoidal enclosure and fiberglass paper cone designed to enhance airflow, stability, and bass response. It supports multiple input types (RCA, AUX, LFE) and boasts efficient amplification for deep, impactful low-frequency performance.

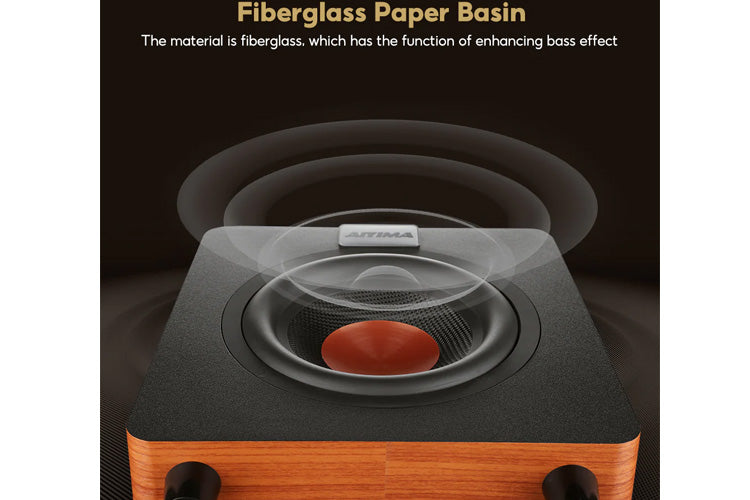

• Glass-Fibre Paper Cone: Enhances bass output with improved rigidity and tone.

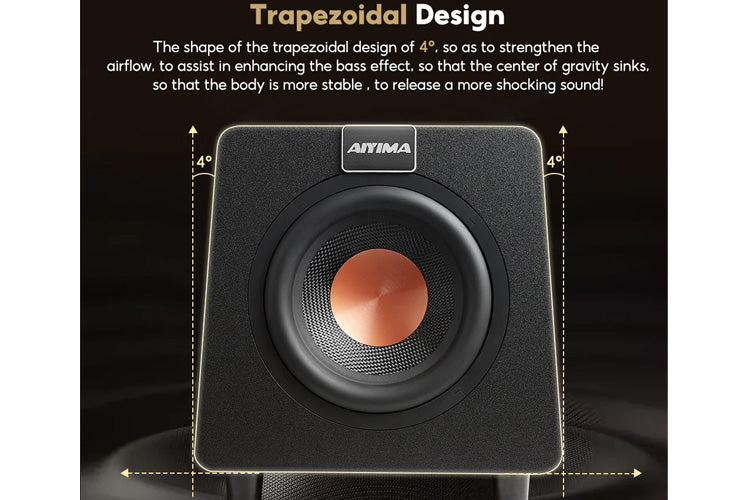

• –4° Trapezoidal Design: Boosts airflow and lowers the center of gravity for improved stability and punch.
• High-Voltage Input: Accepts 60,000–80,000 mV signals for broad device compatibility.
• Multiple Inputs: Supports RCA, AUX, and LFE for versatile audio connections.
• RGB Status Indicator: LED display communicates operational state at a glance.

• Power Output: 100–150 W
• Frequency Range: 30 Hz – 300 Hz (Intercept 50–250 Hz)
• Signal-to-Noise Ratio: ? 85 dB
• Total Harmonic Distortion: < 1%
• Power Input: AC 100–240 V
• Audio Inputs: RCA, AUX, LFE (? 650 mV ± 50 mV)

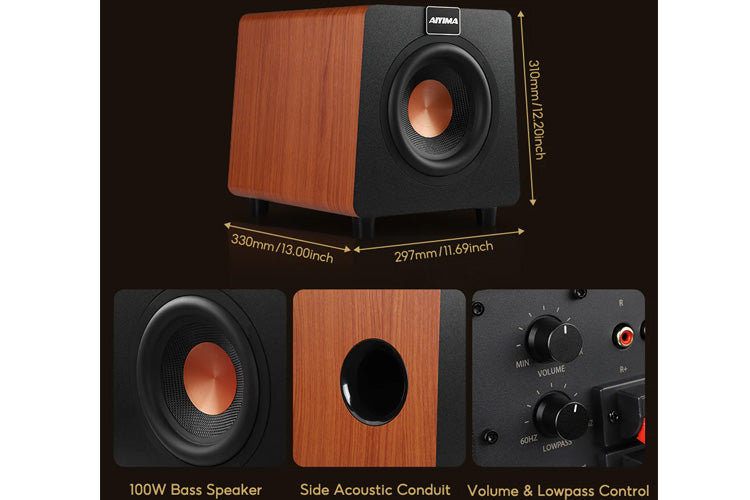

• Enclosure Dimensions (H × W × D): 310 × 330 × 297 mm
• Build Materials: MDF + ABS housing
• Main Control Chip: BP1048B2
• Amplifier Chip: TPA3116D
• Bass Driver: 8? fiberglass cone with external magnetic assembly (3 ?, 100 W) with bronze horn cap
• Included in Box:
  • AIYIMA 800X subwoofer unit
  • Power (AC) cable
  • Audio cable
  • Product specification sheet/manual
